Replacing Holder For Navigation Computer

Removing And Installing/Replacing Holder For Navigation Computer (Convertible)

Remove luggage compartment wheel arch trim on left. Service and Repair

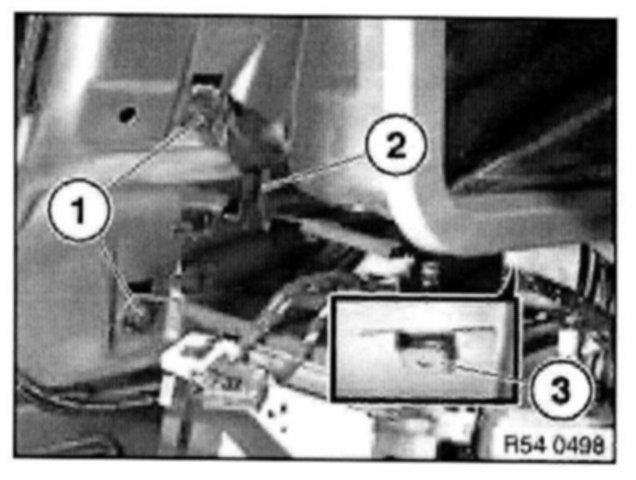

Loosen screws (1).
Pull out navigation computer holder (2) and disconnect plug connections of GPS receiver module.

Installation:
Insert guide of holder (2) into retaining lug (3).
