Antenna, TV: Service and Repair

Removing And Installing/Replacing TV Bumper Antenna

Remove complete rear bumper.

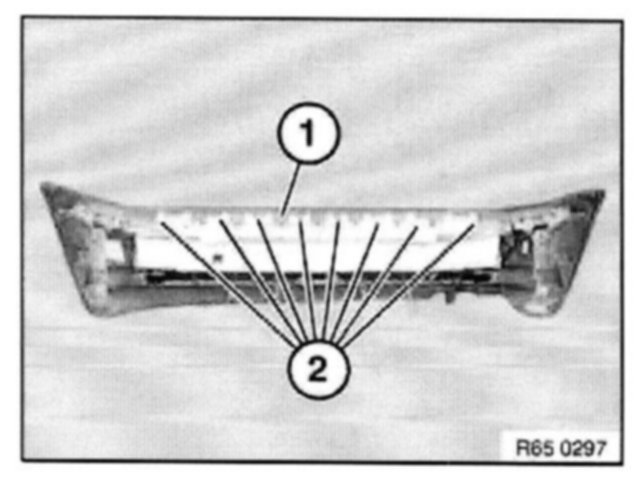

Feed cable (1) out of cable guides (2).

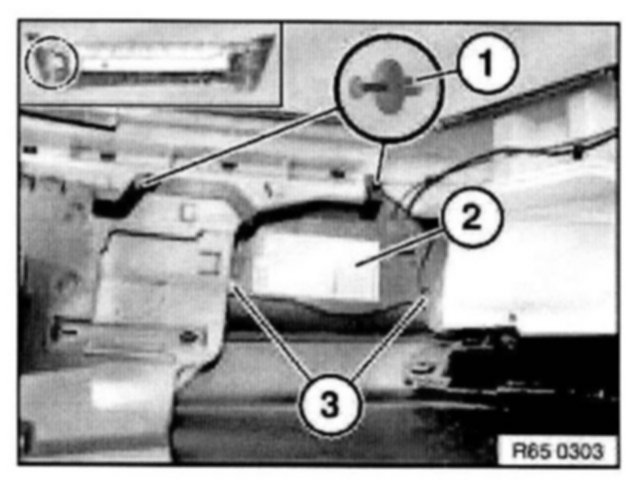

Right bumper side:
Unclip expansion rivets (1).
Feed TV bumper antenna (2) out of guides (3) and remove.

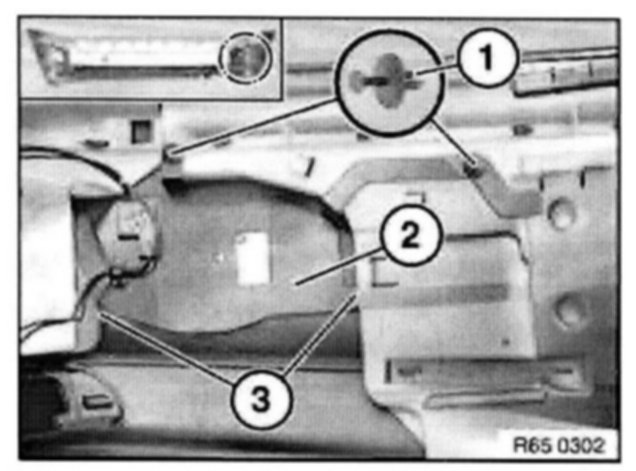

Left bumper side:
Unclip expansion rivets (1).
Feed TV bumper antenna (2) out of guides (3) and remove.
