Cellular Phone Transceiver: Service and Repair

Removing And Installing Transceiver (Cordless Keypad Handset)

Remove panel for trunk separating wall.

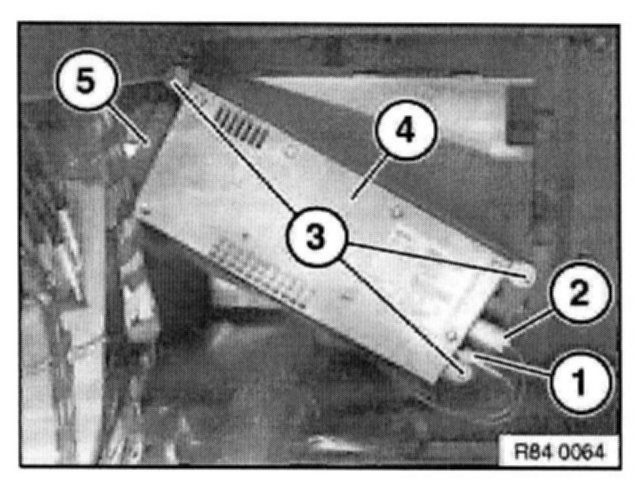

Release knurled nut and disconnect antenna plug (1).
Disconnect plug connection (2).
Release screws (3).
Lever out transceiver (4) slightly and disconnect plug connection (5).
Remove transceiver (4).
