Antenna, Phone: Service and Repair

Removing And Installing/Replacing Basic Antenna

Remove oddments tray.

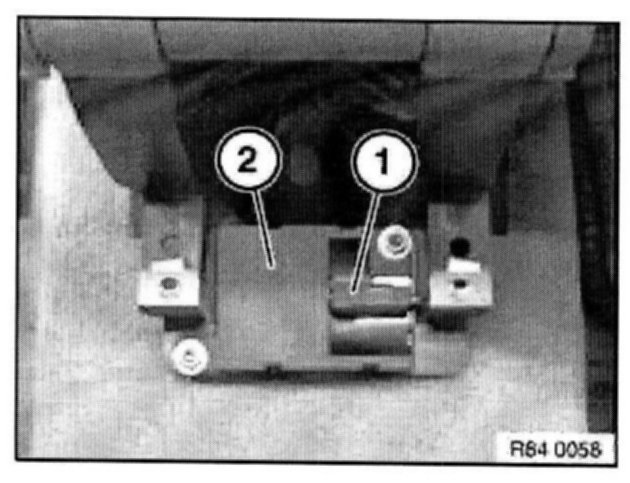

Disconnect plug connection (1) and remove basic antenna (2).

Installation Note: Make sure basic antenna (2) is correctly positioned.







Replacement:

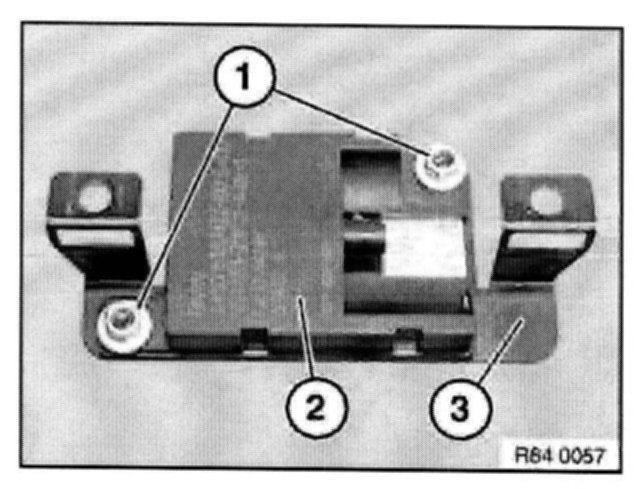

Unscrew nuts (1).
Remove basic antenna (2) from holder (3).
