DME/Automatic Heating and Air Conditioning Interface (( N62 Engine or N62/TU Engine ) As of 03/04 Up to 03/06)

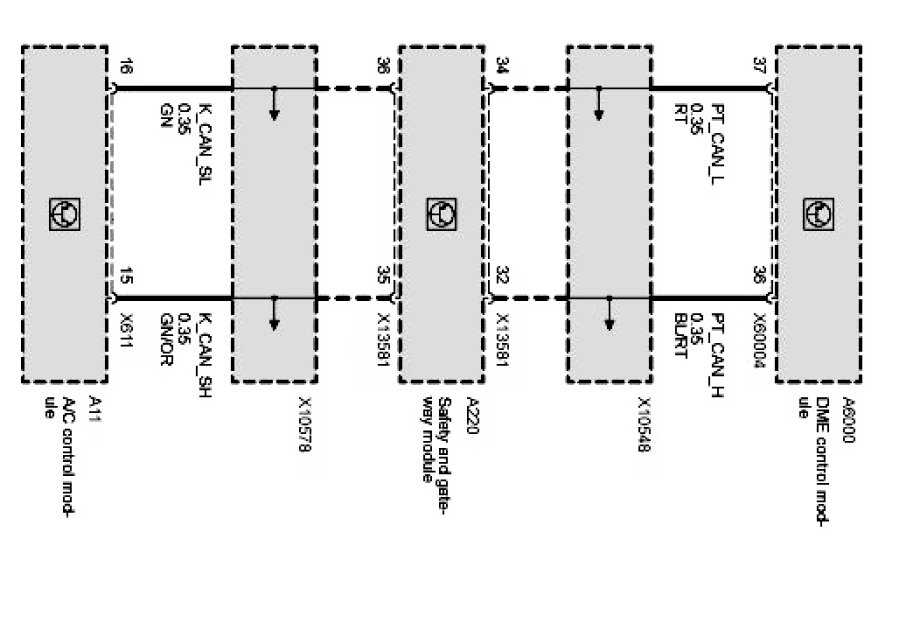

DME/automatic heating and air conditioning interface:
