CAN-Bus Functions (As of 03/04 Up to 03/06)
CAN-Bus Functions (As of 03/04 Up to 03/06)

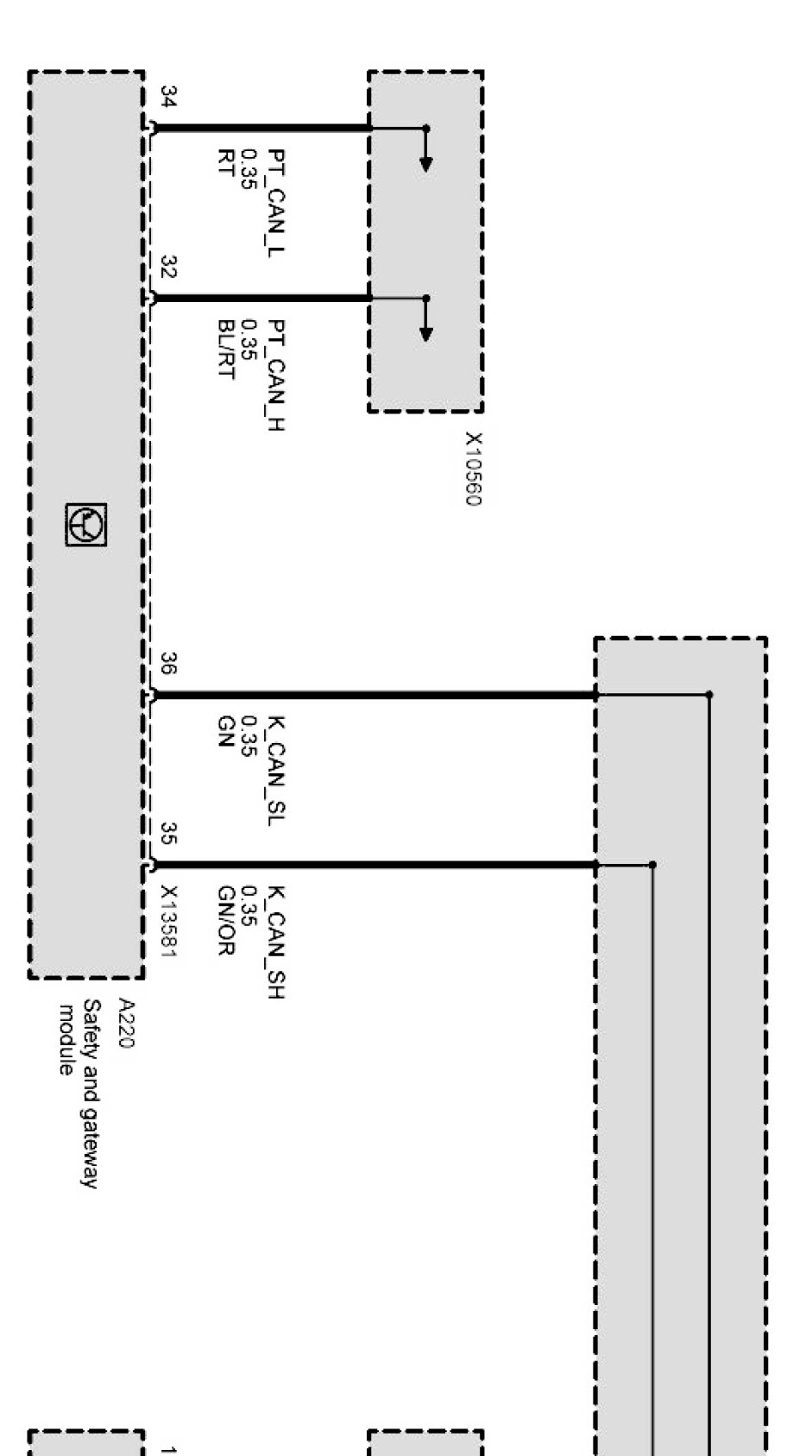

CAN-bus functions Part 1:

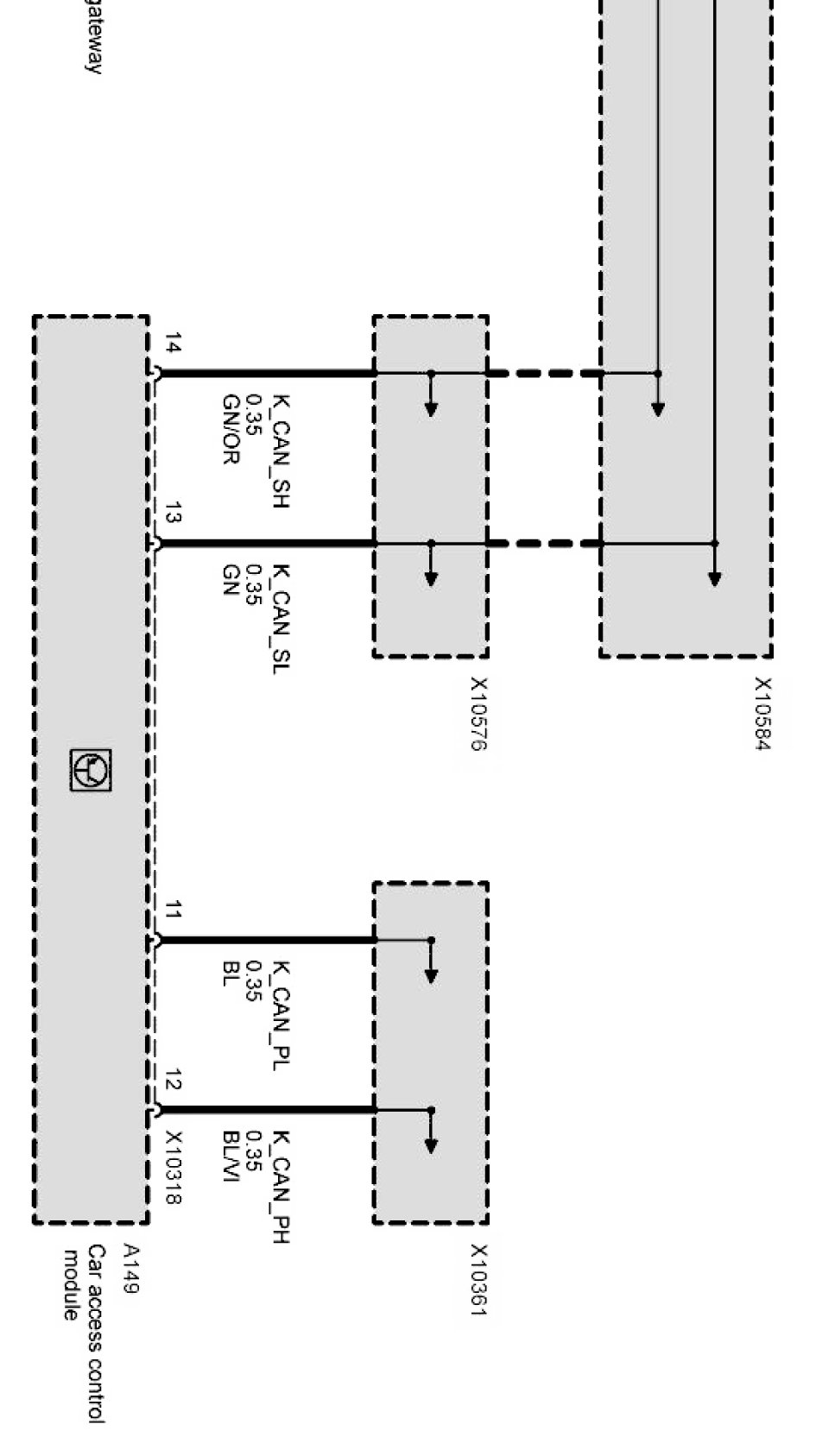

CAN-bus functions Part 2:
