Seat Heating, Rear Passenger's Side (Up To 03/06)

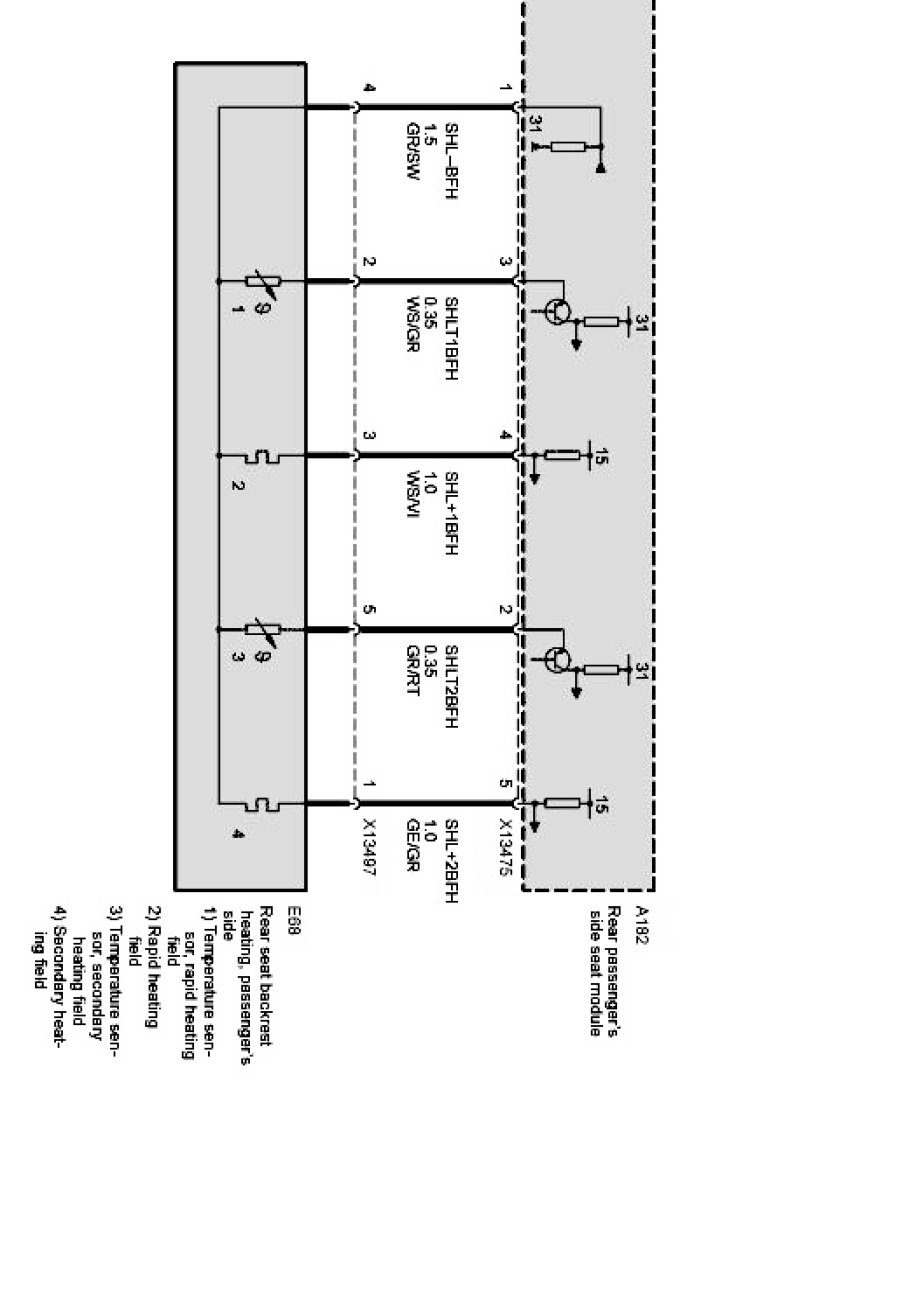

Seat heating, passenger side, rear Part 1:

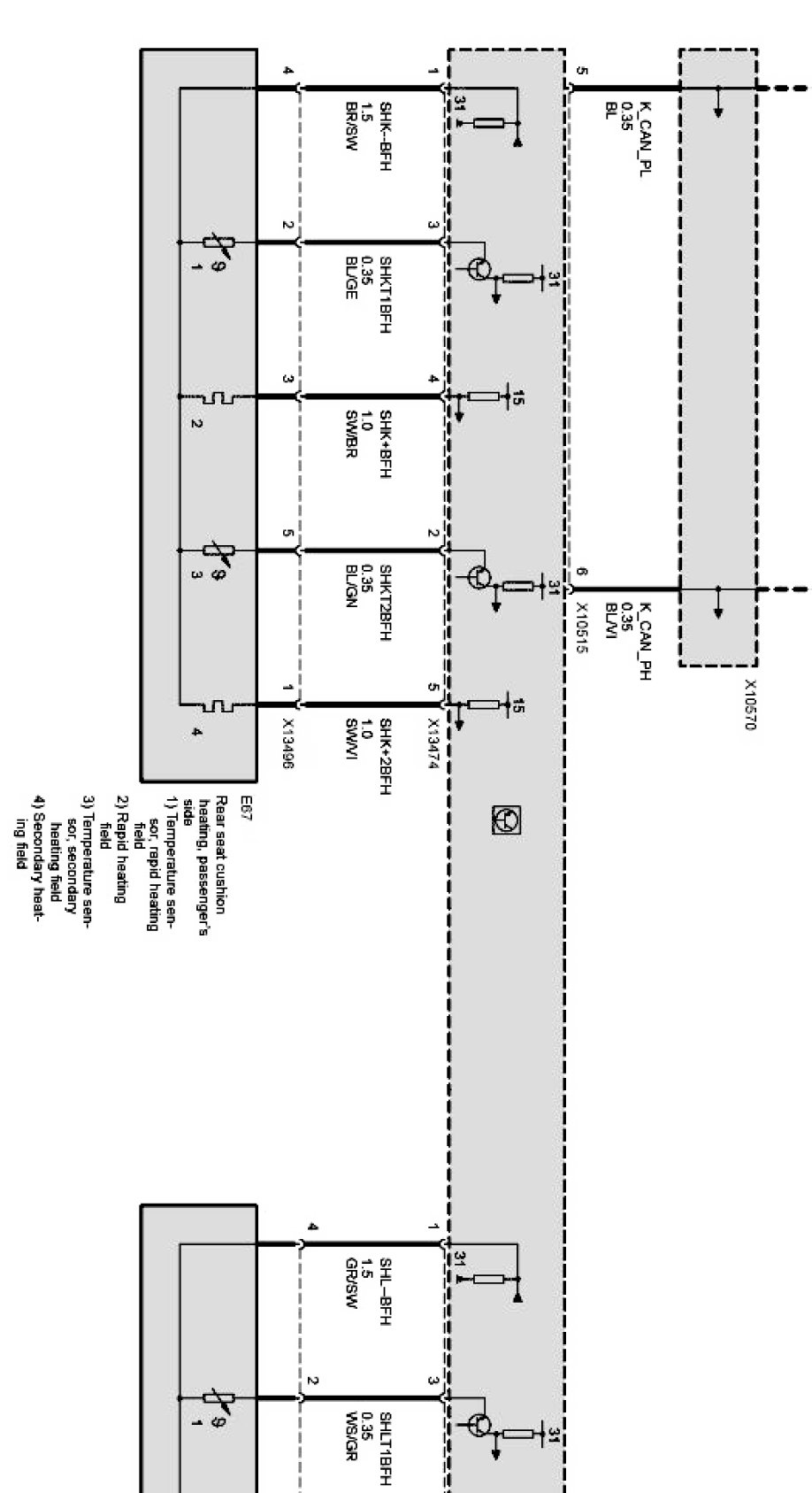

Seat heating, passenger side, rear Part 2:

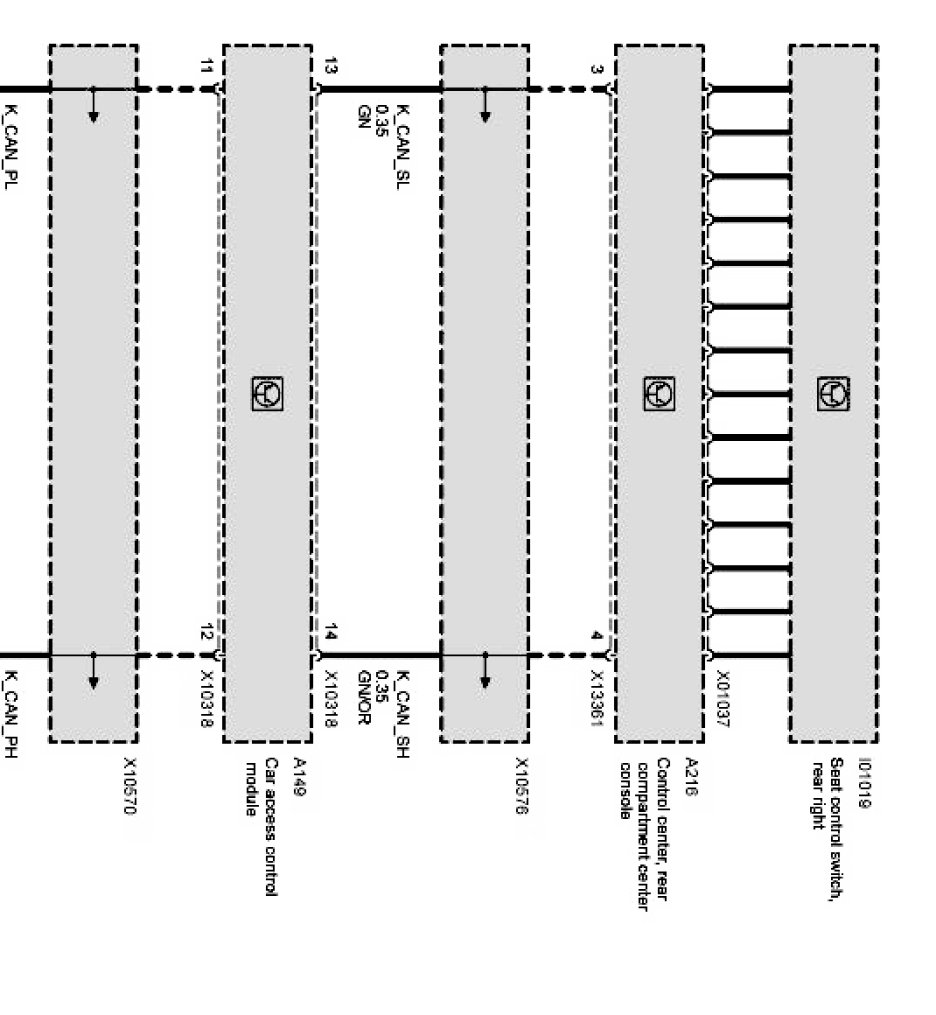

Seat heating, passenger side, rear Part 3:
