Driver's Seat Adjustment (As of 03/03 Up To 03/06 With Without Lumbar Support)

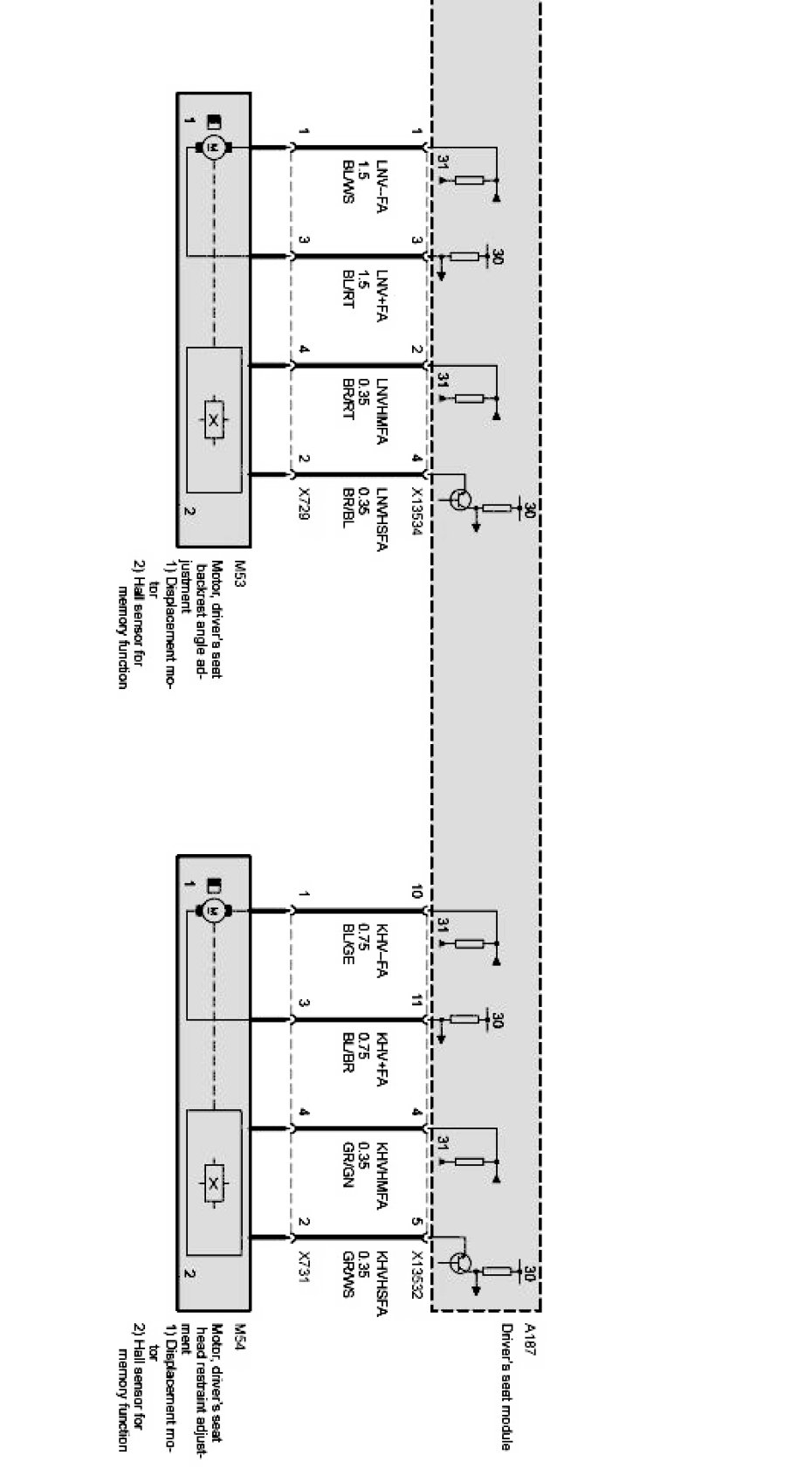

Driver-seat adjuster Part 1:

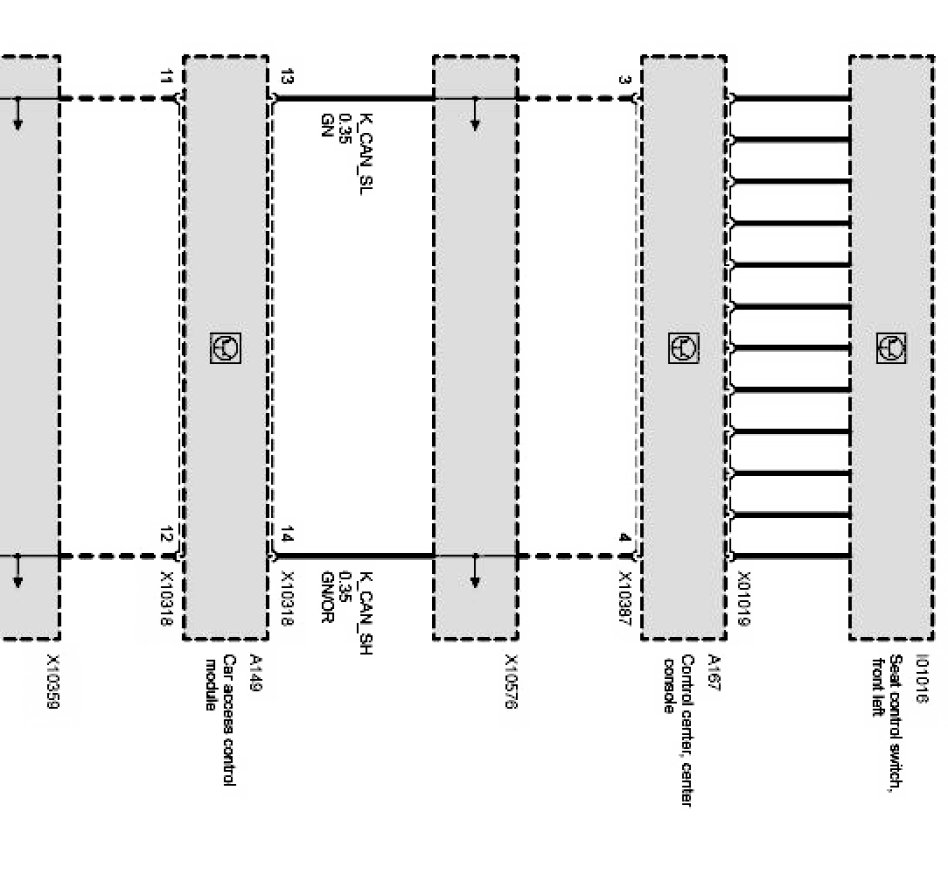

Driver-seat adjuster Part 2:

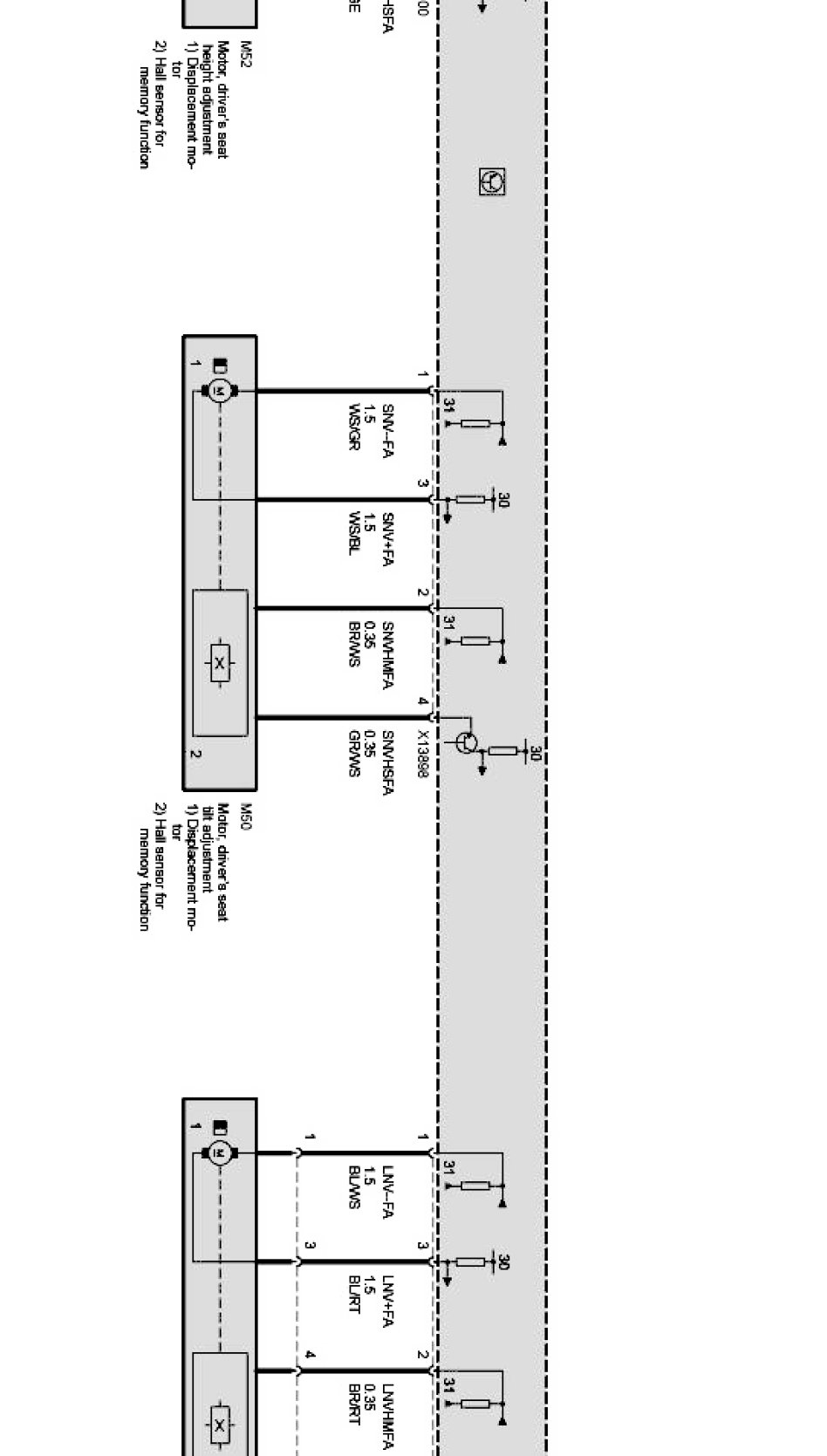

Driver-seat adjuster Part 3:



Driver-seat adjuster Part 4:
