Supply, Rear Passenger's Side Door Module (Up To 03/06)

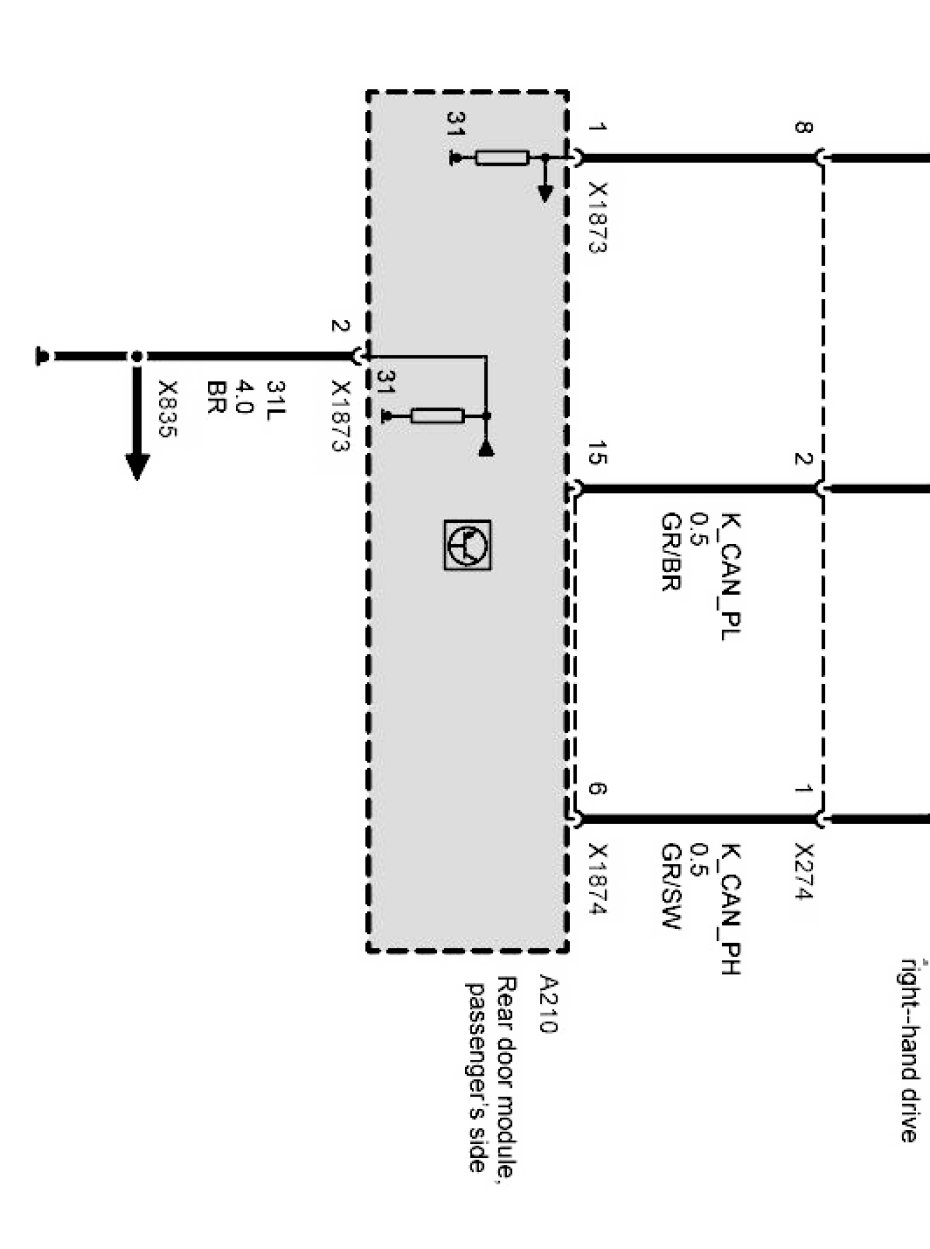

Supply, rear passenger's side door module Part 1:

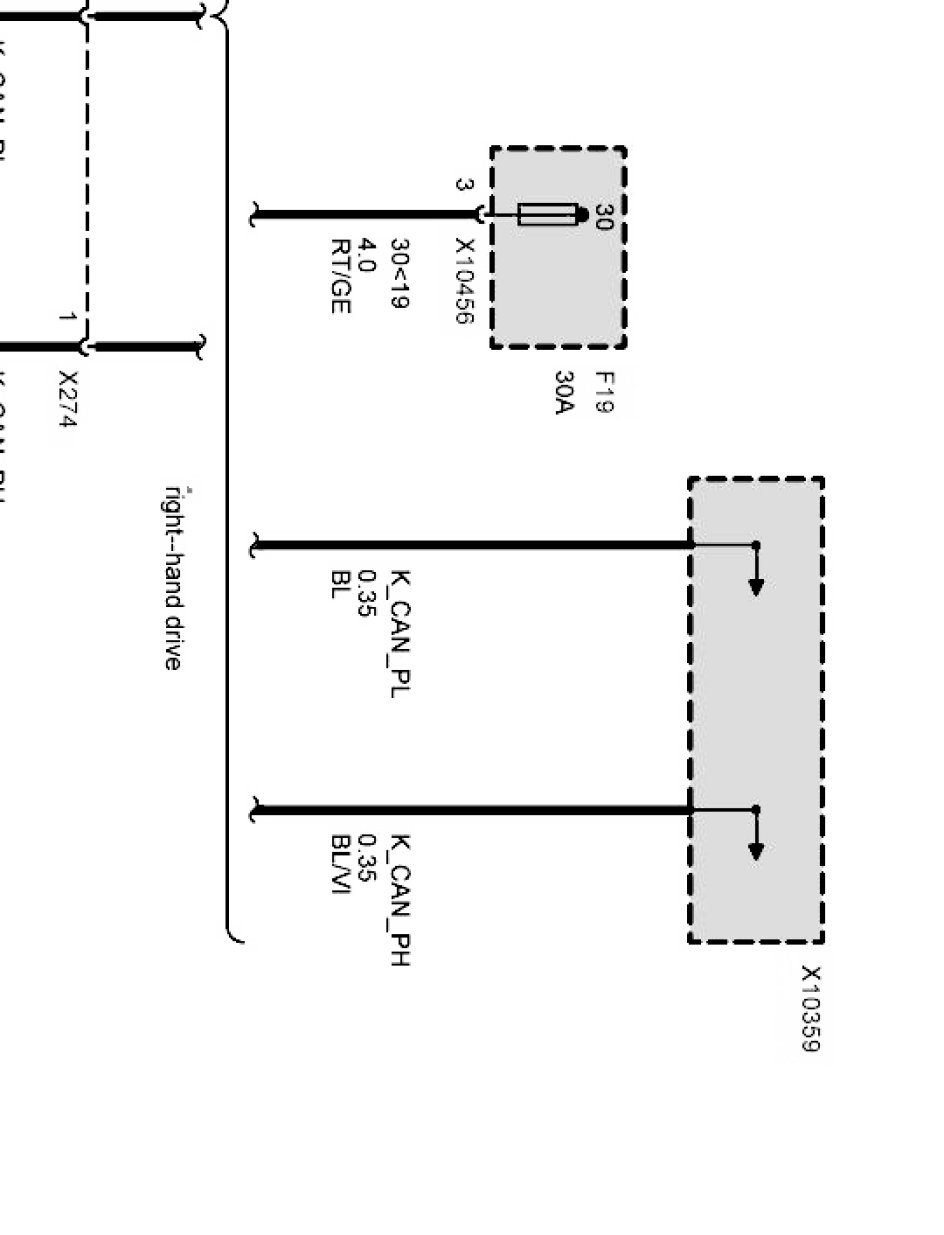

Supply, rear passenger's side door module Part 2:

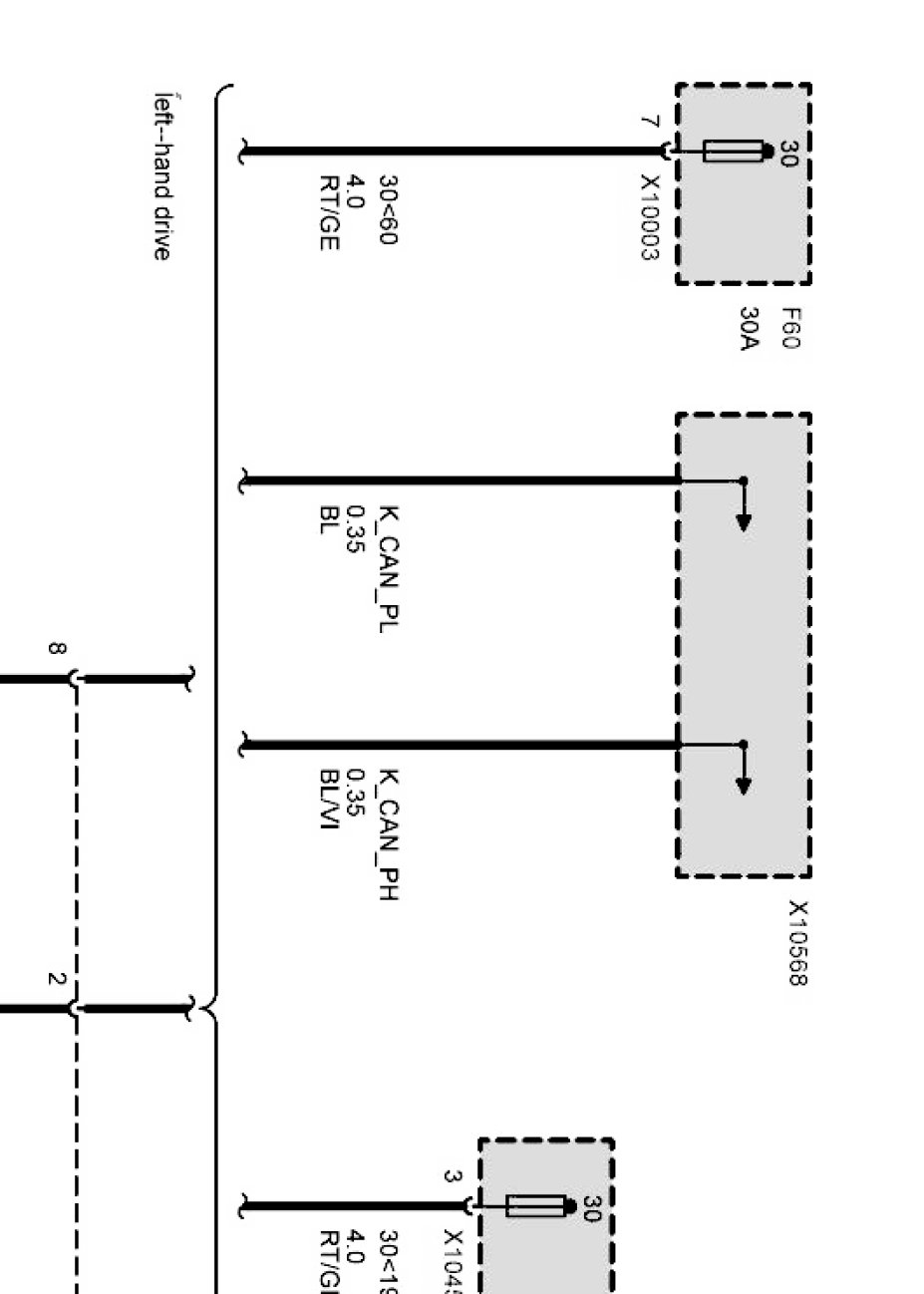

Supply, rear passenger's side door module Part 3:
