Central Locking ((E65 Up To 09/02 ) or (E65 As of 09/02 Up To 03/06 W/ (CA Comfort Access or Soft Close) W/O Safety Vehicle ))

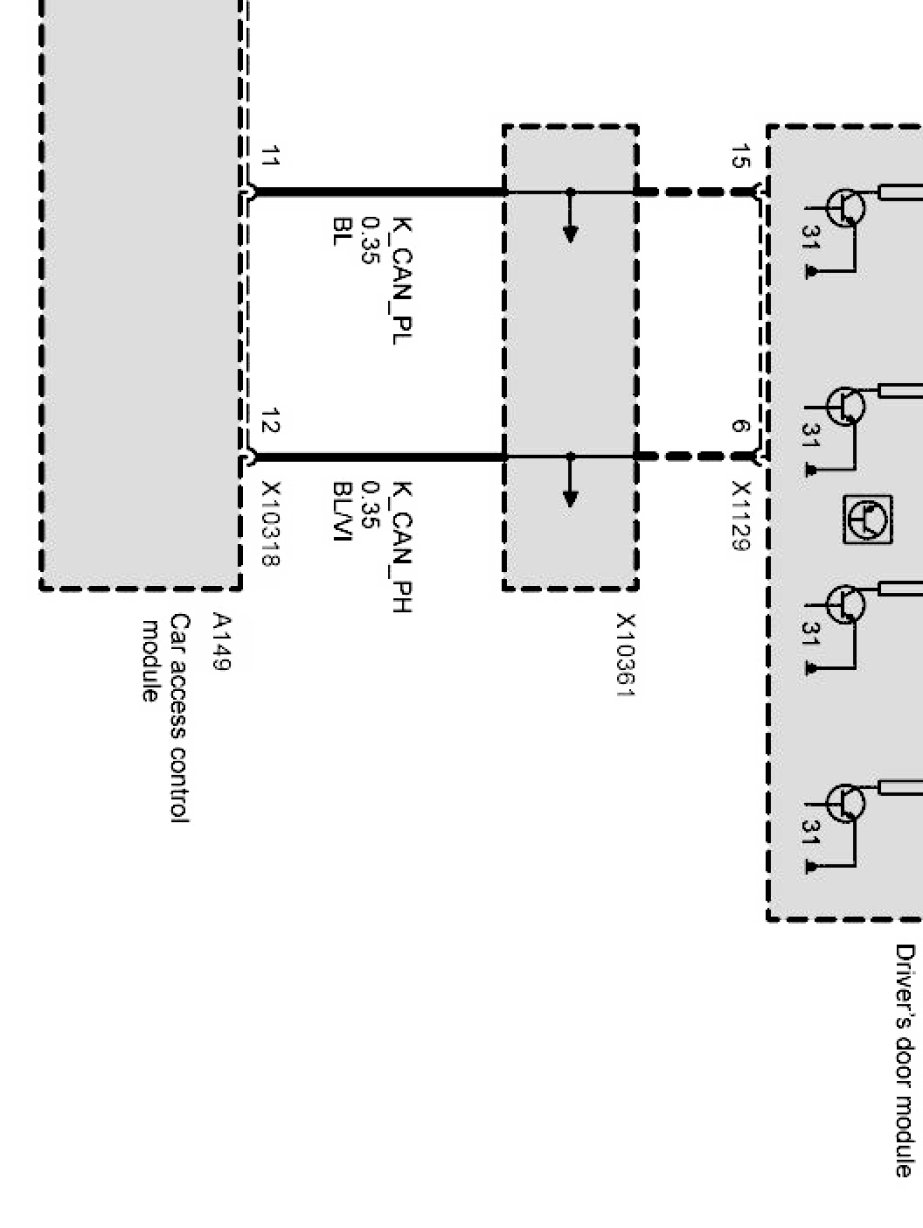

Central operating point, central locking Part 1:

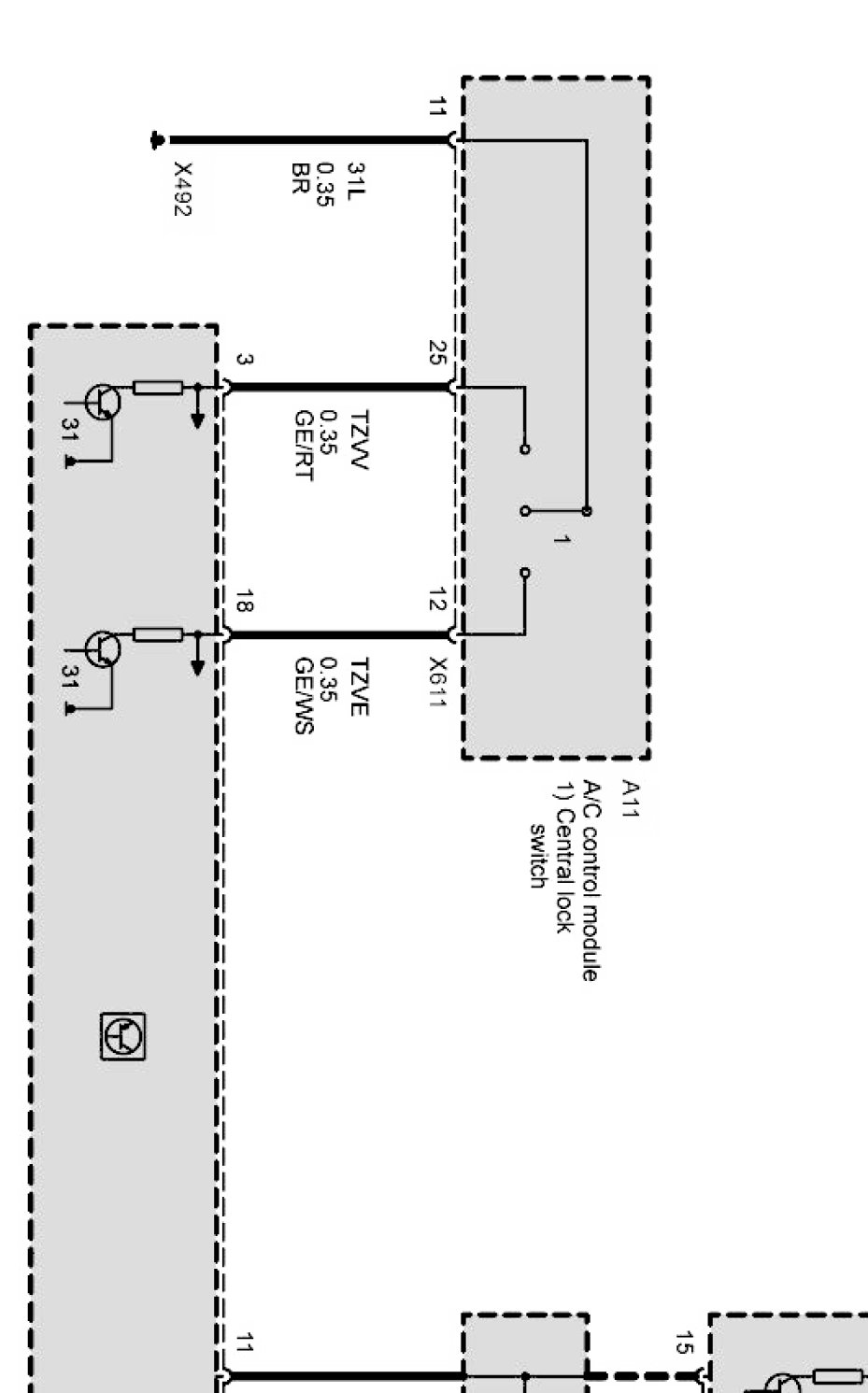

Central operating point, central locking Part 2:

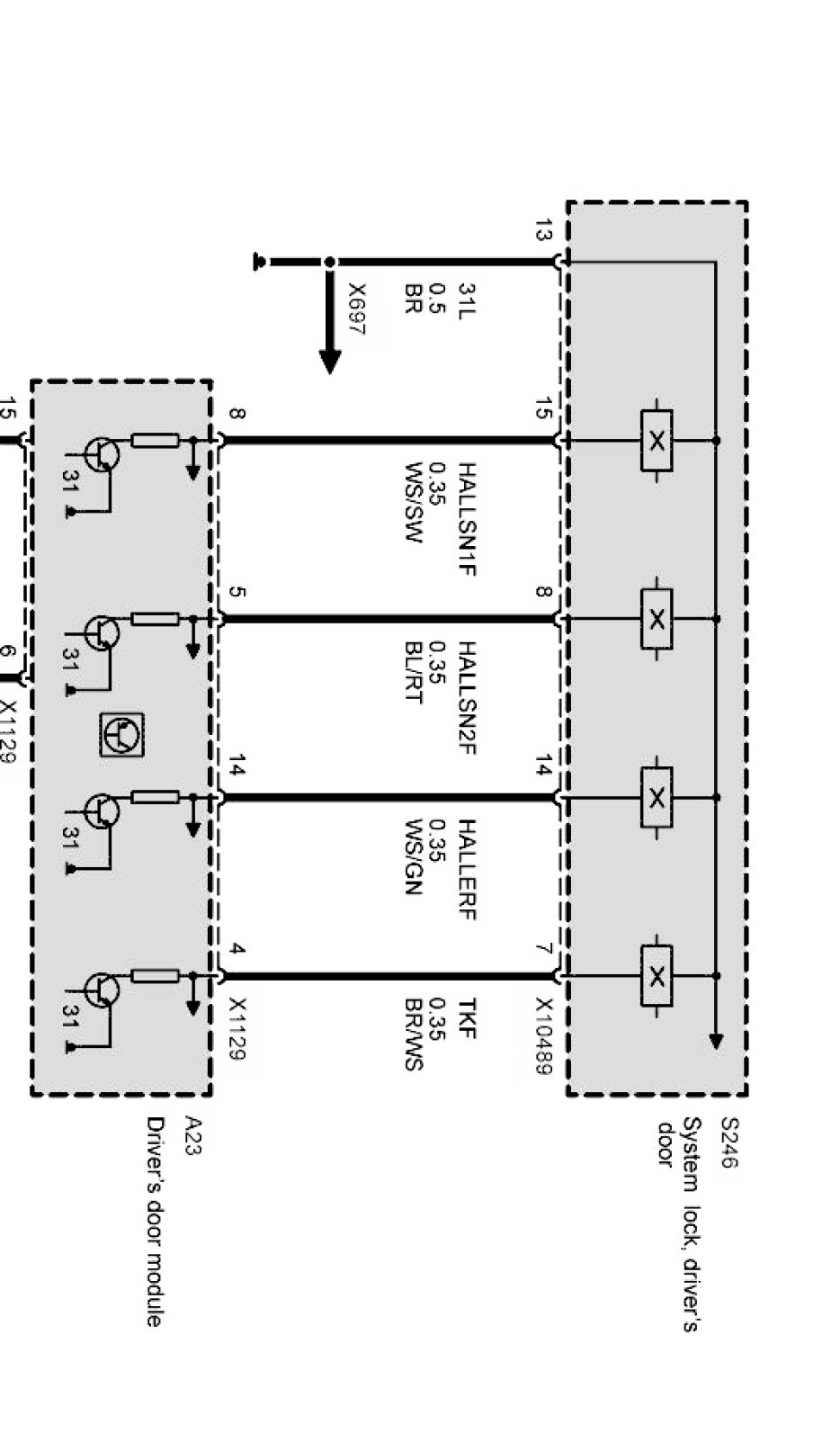

Central operating point, central locking Part 3:
