OBDII Socket (N52 Up to 09/05)

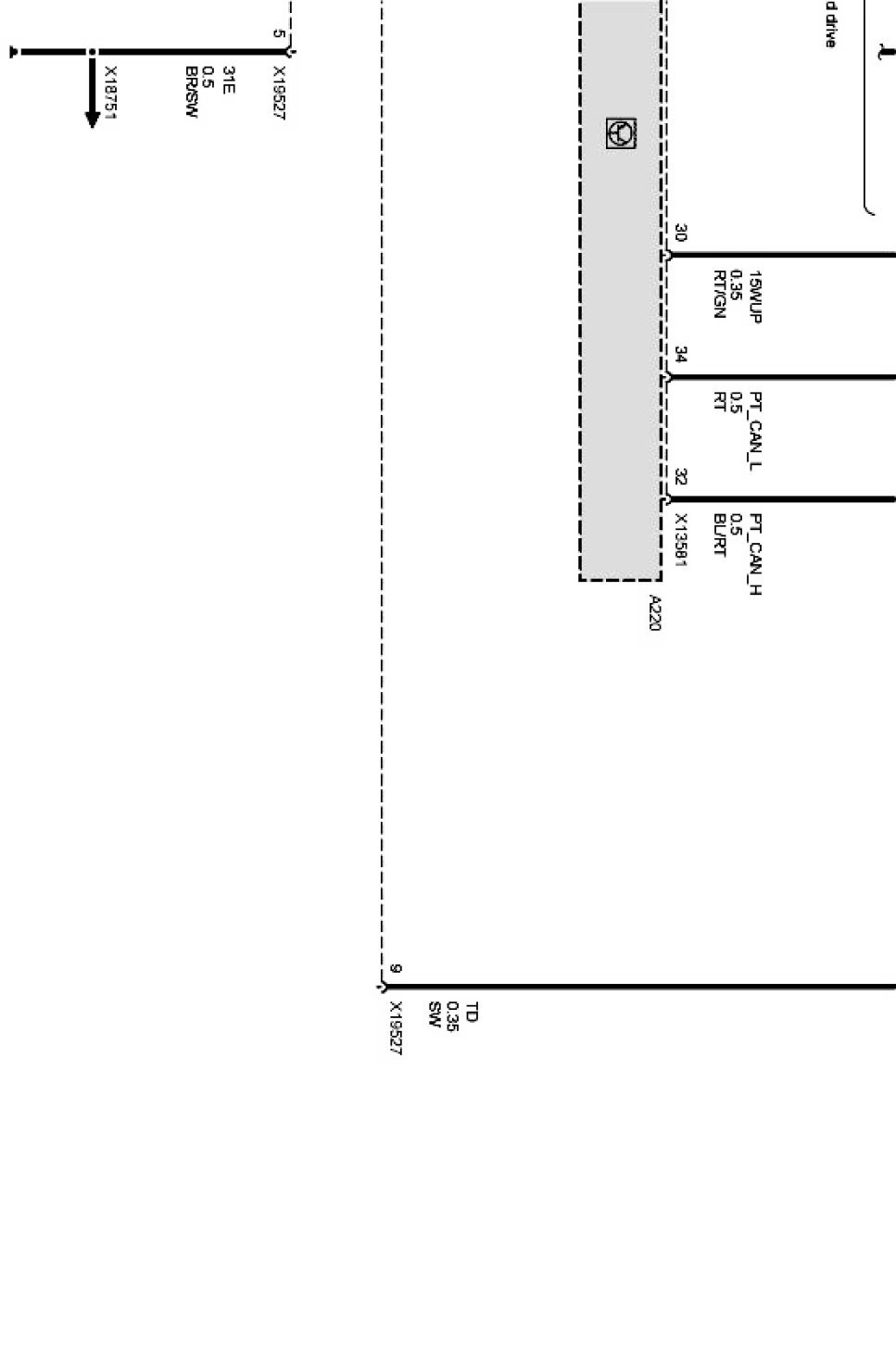

OBDII socket Part 1:

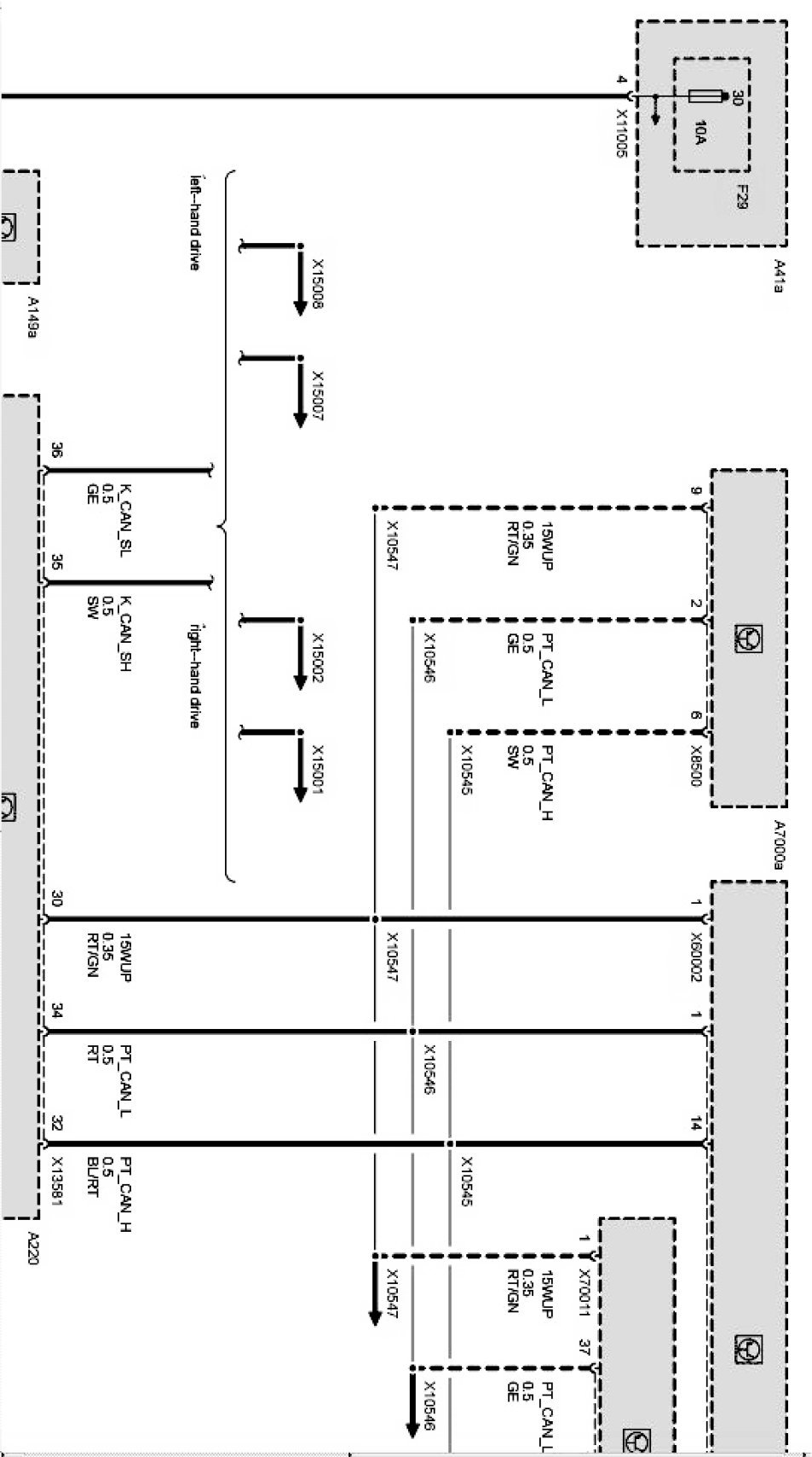

OBDII socket Part 2:

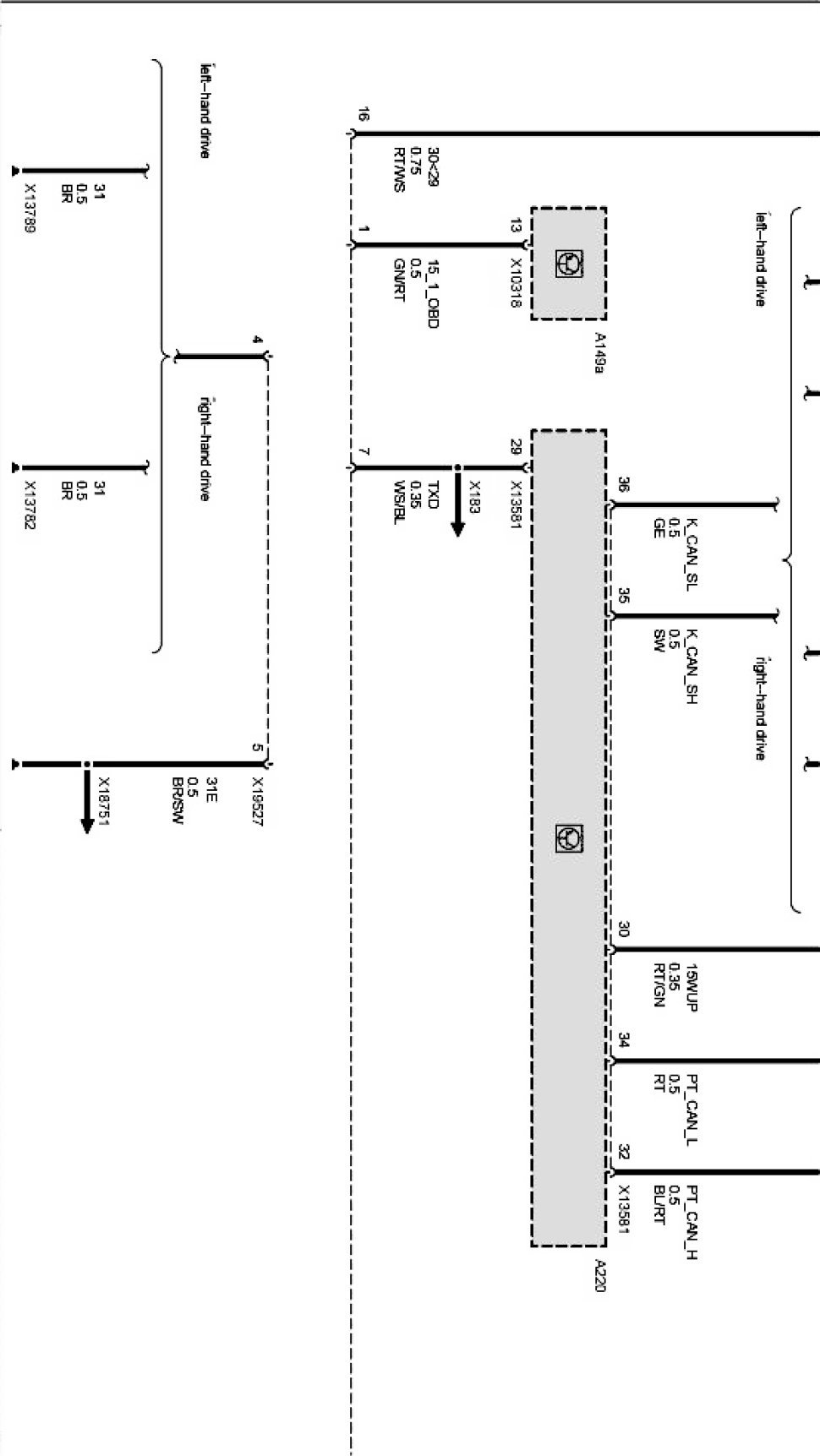

OBDII socket Part 3:

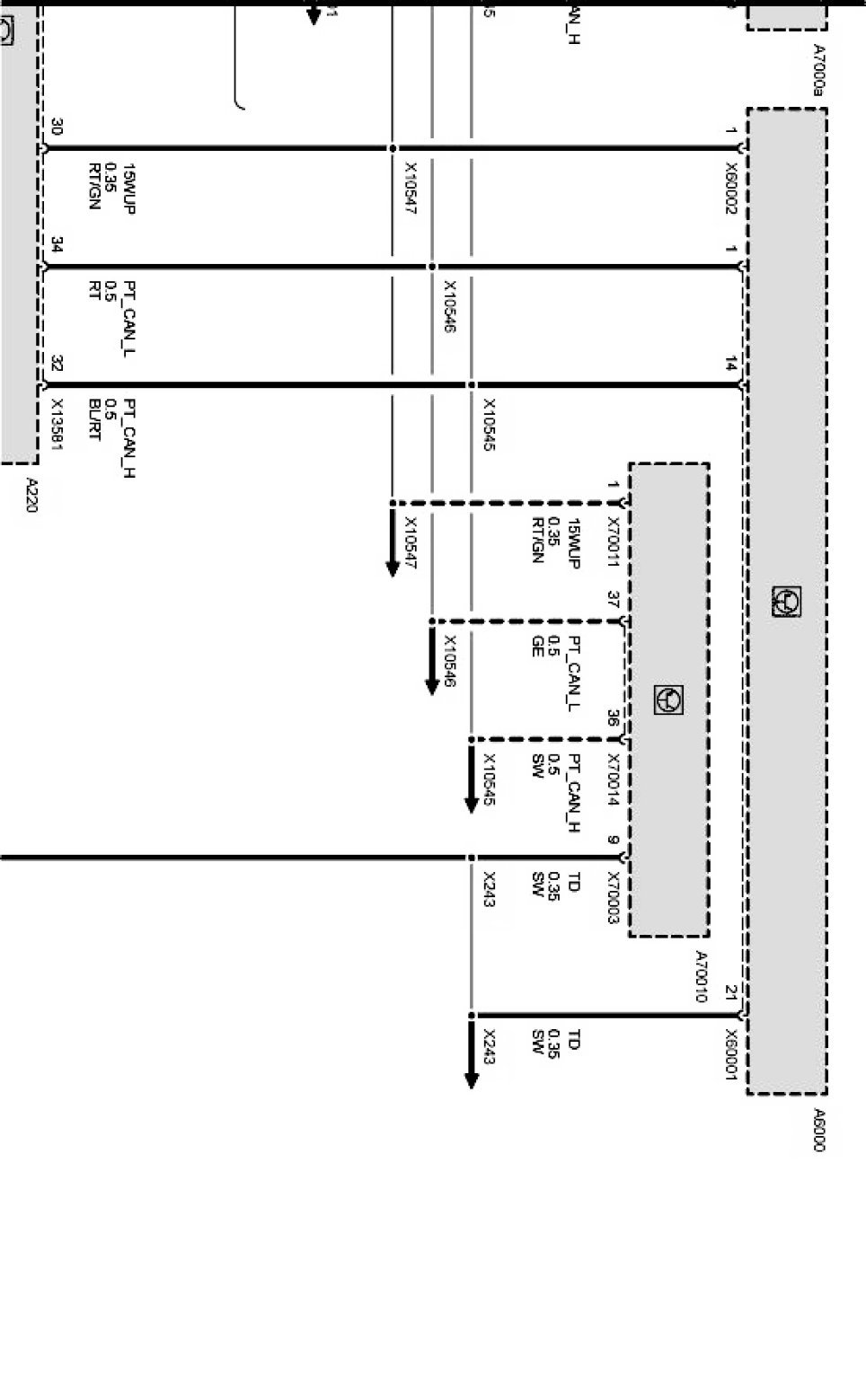

OBDII socket Part 4:
