Replacing Rubber Guide for Rear Left or Right Door Window

51 34 211 - Replacing rubber guide for rear left or right door window





Special tools required:






Important!
The "Instructions on fitting window guide seals Removal and Replacement" serve as the basis for this repair instruction and must be observed without fail.





Necessary preliminary tasks:
- Remove cover on inside door window frame Removing and Installing/Replacing Housing Cover on Inner Left or Right Door Window Frame
- Release trim on window guide and slide downwards slightly, do not remove
E91 only:

- Remove trim on window frame at rear

Note:
Window cavity cover strip does not have to be removed.

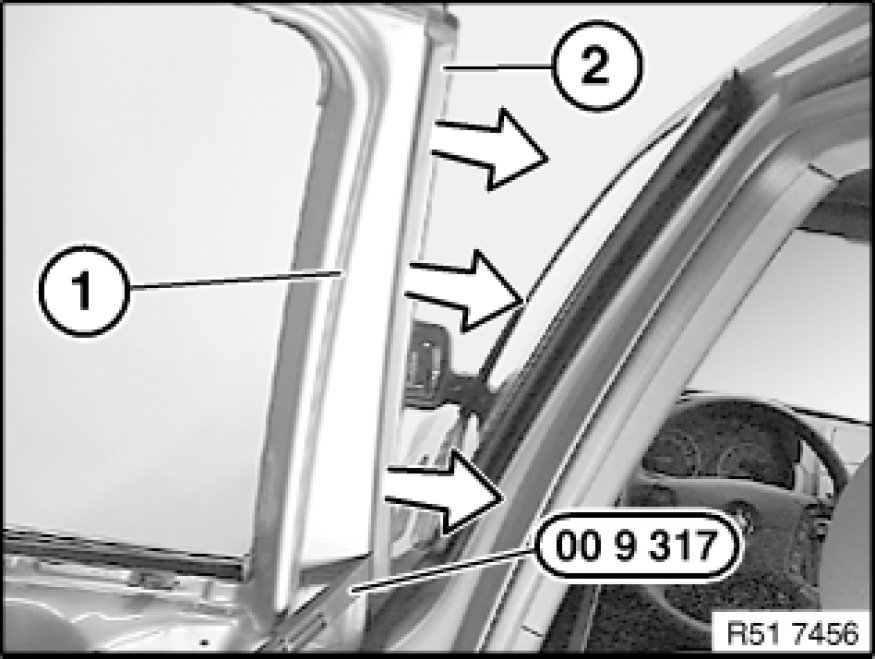

Lever out rubber guide (1) on door window frame at front (2) with special tool 00 9 317.





Pull rubber guide (1) out of window guide.

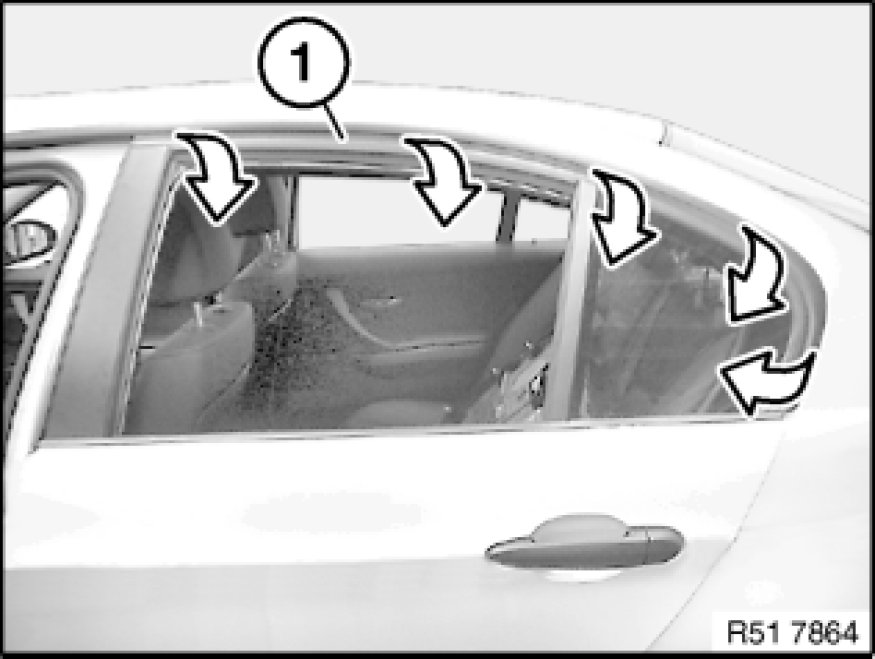

Detach rubber guide (1) in direction of arrow from door.





Installation Note:
Moisten rubber guide (2) prior to fitting with approved anti-friction agent Removal and Replacement.

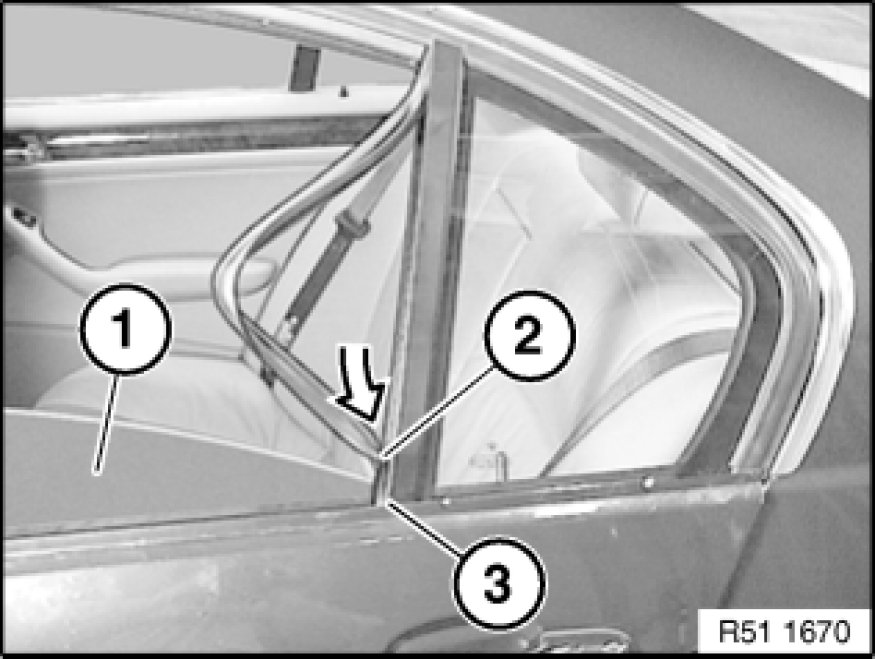

Close door window glass (1) a little.

Push rubber guide (2) onto door window glass (1) and into window guide (3).
