A5S 360R/390R Transmission

Replacing Pulse Generator (Output Speed) (A5S 360R/390R)

Note: After completion of work, check transmission fluid level.

Caution:
Use only the approved transmission fluid in this automatic transmission.
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Remove transmission fluid sump.

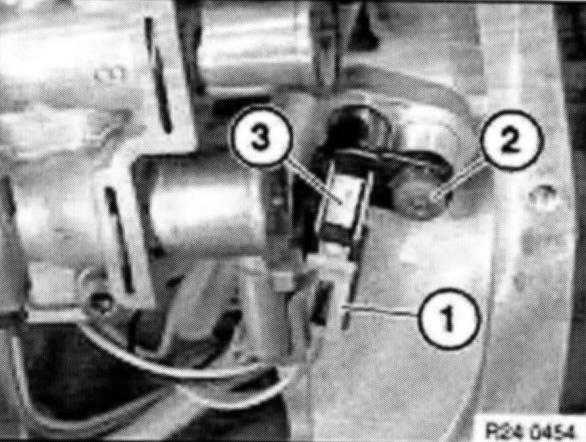

Disconnect plug (1).

Release screw (2).
Tightening torque, 24 34 4AZ.

Withdraw pulse generator (3).

Read out fault memory of EGS control unit.

Check stored fault messages, eliminate faults and then clear fault memory.
