Lowering Front Axle Support

Lowering front axle support

Note: Engine suspended in installation position from special tool.

Remove engine underguard. Remove reinforcement (cross).
Remove reinforcement (plate).
Remove steering spindle from steering gear.
Remove retaining bracket for stabilizer bar.
Remove left and right engine mounts from front axle support.

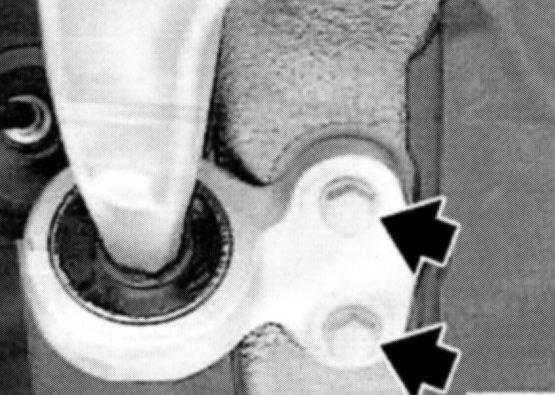

Remove control arm bracket from engine support on left and right.

Installation:
Control arm holder to engine carrier 59 Nm
Note: Replace screws.






Support front axle support in middle with workshop hoist.

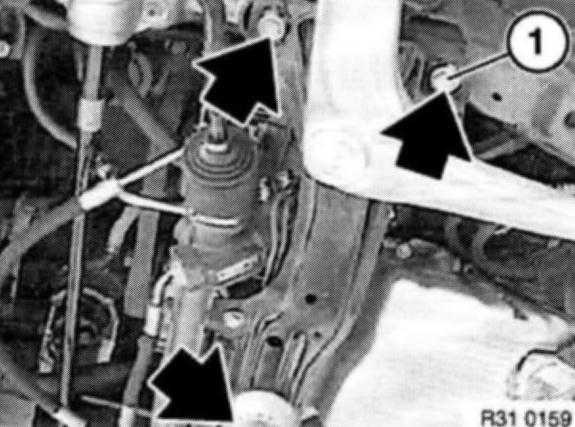

Remove front axle support from engine support on left and right.

Caution!
Pressure hose of power steering must not be subjected to tensile load.

Lower front axle support.

Installation:
First tighten down both rear screws (1).
