A5S 325Z Transmission

Replacing Wiring Harness In Automatic Transmission (A5S 325Z)

Note: After completing work, top up ATF level.
Check/top up fluid level in automatic transmission, refer to 00 11 500.

Remove transmission oil sump, refer to 24 11 003.

Remove transmission oil screen, refer to 2431 151.

Remove shift unit, refer to 24 34 010.

Caution:
It is absolutely essential to use the approved automatic transmission fluid in this automatic transmission,
Failure to comply with this requirement will result in serious damage to the automatic transmission!

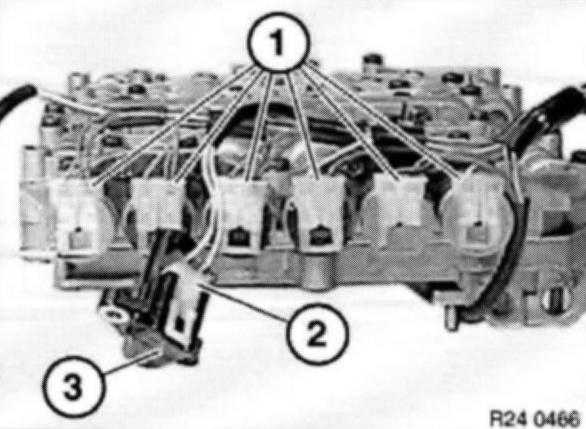

Disconnect plug (1) from solenoid valve.

Detach plug (2) from pulse generator (3).

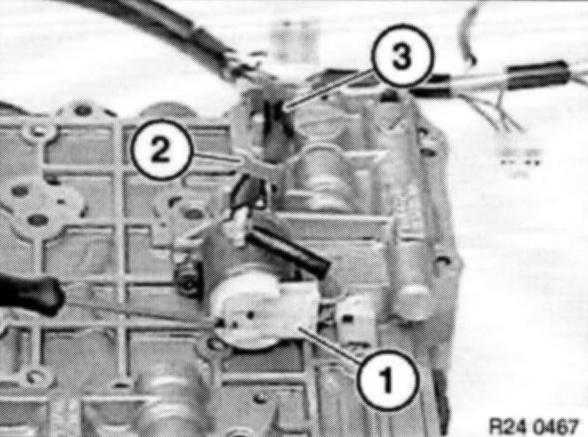

Remove connector (1).

Remove retaining clip (2).

Remove wiring harness from cable guide (3).
