Replacing Rubber Mount For Transmission Mounting (4WD)

Replacing Rubber Mount For Transmission Mounting (4WD)
Remove exhaust system.
Remove rear underbody protection from assemblies. Support transmission with transmission lifter.
Remove cross-member for transmission mounting.

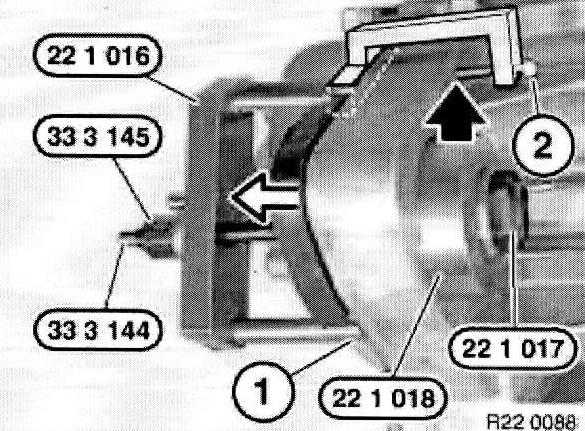

Place special tool 22 1 016 on opening (1) and insert screw (2) until hand-tight against housing.
Remove rubber mount with special tools 22 1 017 1018 and 33 3 144 /145.





Installation:

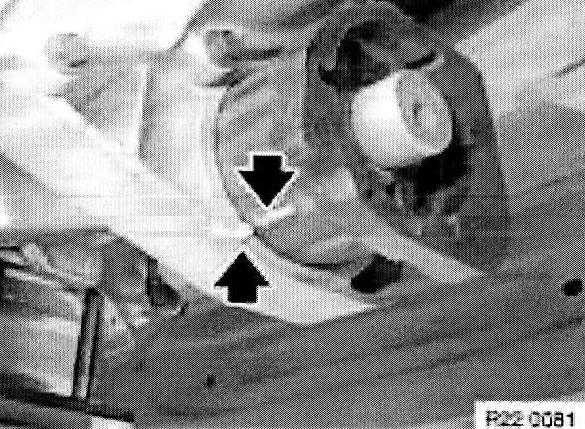

Arrow on rubber mount must point to arrow on housing.
Coat housing bore and rubber mount with Circo light.

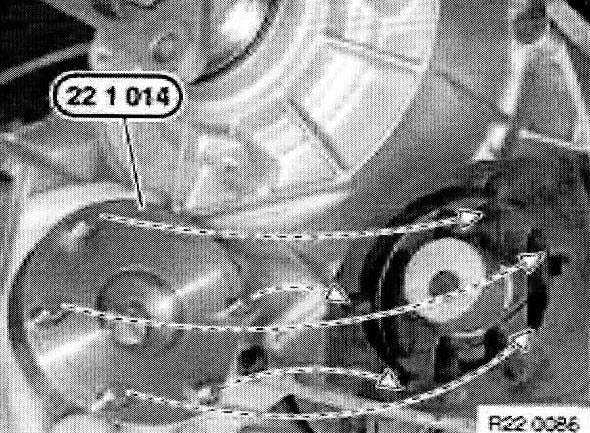

Insert special tool 22 1 014 with pins into openings of rubber mount.

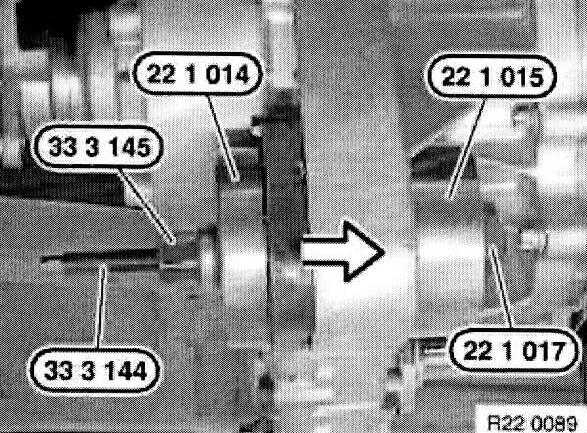

Draw in rubber mount with special tools 22 1 014 / 015 / 017 and 33 3 144 / 145.
