Replacing Cross-member For Transmission Mounting


Replacing Cross-member For Transmission Mounting

Remove exhaust system.

Remove heat shield at front left and right.

Support transmission with hydraulic lifter.

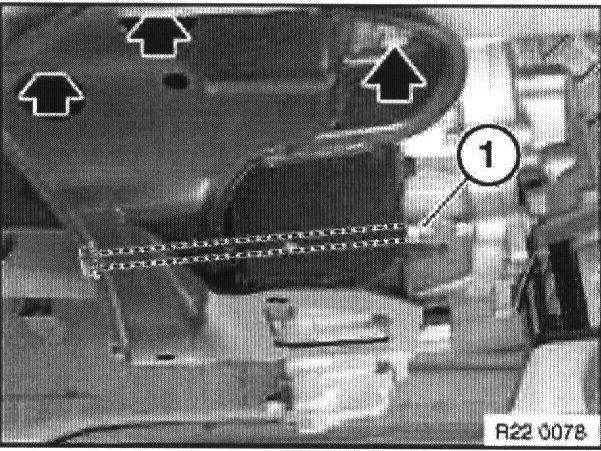

Release nut (1) and remove screw.

Unscrew left and right bolts.

Remove cross-member.
