22 32 001 Replacing Rubber Mount For Transmission Mounting

22 32 001 Replacing rubber mount for transmission mounting

Special tools required:
^ 22 1 011
^ 22 1 012
^ 22 1 013
^ 22 1 016
^ 33 3 144

Remove cross-member for transmission mounting.

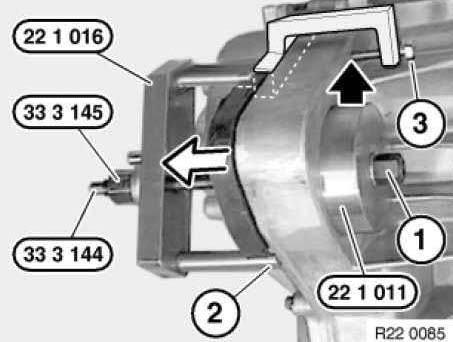

Position special tool 22 1 016 on opening (2) and twist in screw (3) hand-tight against housing.
Pull out rubber mount with special tools 22 1 011 / 33 3 144 and nut (1).
Nut (1) = nut M 12x1.5 of rubber mount screw M12x1.5x220.





Installation:
Arrow on rubber mount must point to arrow on housing.
Coat housing bore and rubber mount with circo light, refer to BMW Parts Service.

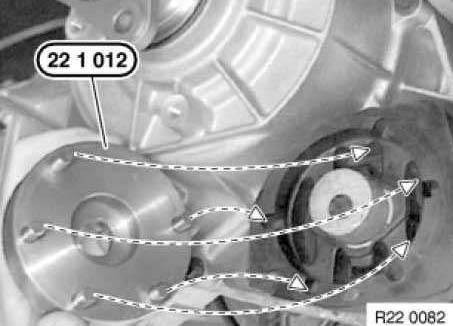

Insert special tool 22 1 012 with pin into openings in rubber mount.
Pull in rubber mount with special tools 22 1 012/22 1 012/22 1 013 and 33 3 144.
From rubber mount screw M12x1.5x220, use nut (1) M12x1.5.
