Replacing Selector Rod Joint

25 11 111 Replacing selector rod joint
Transmission removed.





Detach locking clamp.

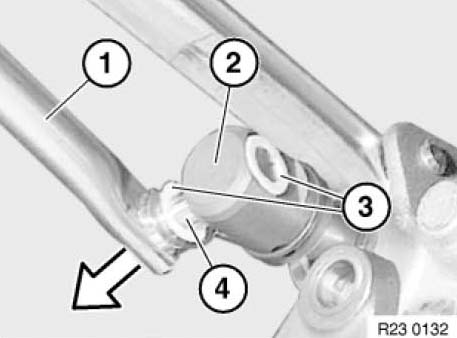

Withdraw shift rod (1) from shift rod joint (2) and remove disks (3).

Installation:
Grease shift rod pin (4).
Grease,
refer to BMW Service Operating Fluids.

Large contact surface of disks (3) must rest on shift rod joint (2).

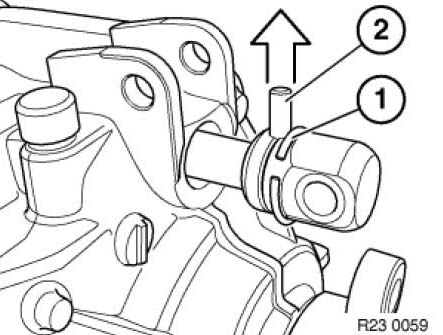

Lever spring washer (1) out of groove and push a little towards rear.
Press straight pin (2) upwards or downwards out of shift rod joint and remove shift rod joint.

Installation:
Grease ball of transmission selector shaft.
Grease,
refer to BMW Service Operating Fluids. Replace spring washer ( 1).





Installation:

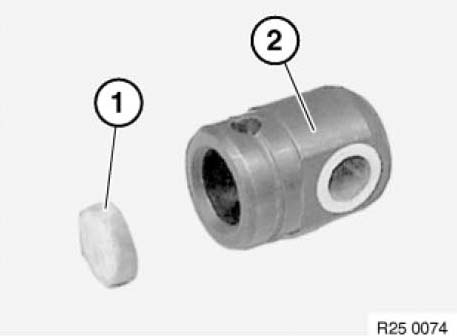

Check rubber ring (1) in shift rod joint (2) and replace if necessary.
