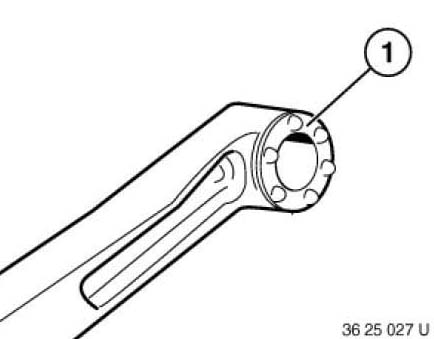

Replacing Bearing Bush For Shift Arm

25 11 235 Replacing bearing bush for shift arm
Remove shift arm.
This operation is described in the work step "Replacing shift arm for shift lever mount".





Press out bearing bush.
Coat new bearing bush with circo light and then press into shift arm until side flanges of bearing bush protrude uniformly.
circo light,
refer to BMW Parts Service.
