Shift Cable: Service and Repair

Replacing Cable For Gear Selector Lever
Remove shift bracket, refer to 25 16 056.

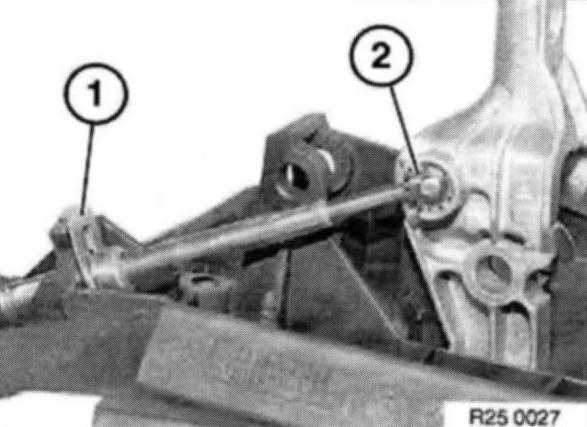

Pull retaining plate (1) off cable.

Lift retaining disk (2) out of selector lever.

Installation:
Replace retaining disk (2).

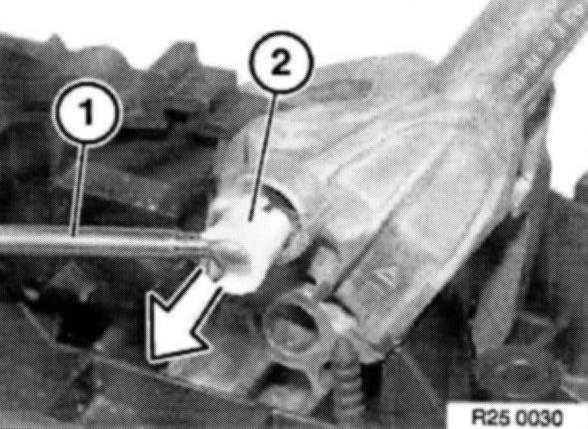

Pull cable (1) out of ball shell (2) out of selector lever

Installation:
Replace ball shell (2).

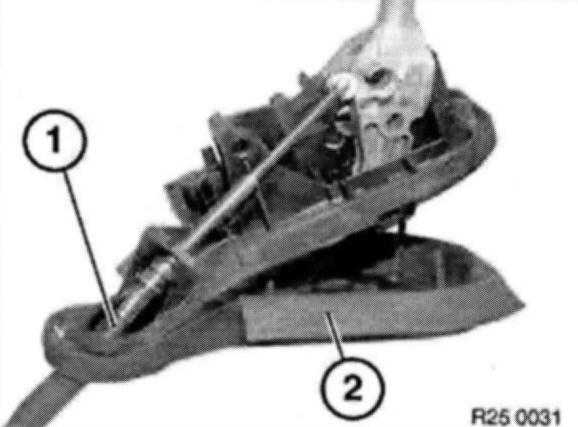

Remove cable (1) with rubber sleeve (2) from shift tower.
