A5S 325Z Transmission

Adjusting Selector Lever (A5S 325Z)
Check cable for ease of movement.
Move selector lever to "P" setting.

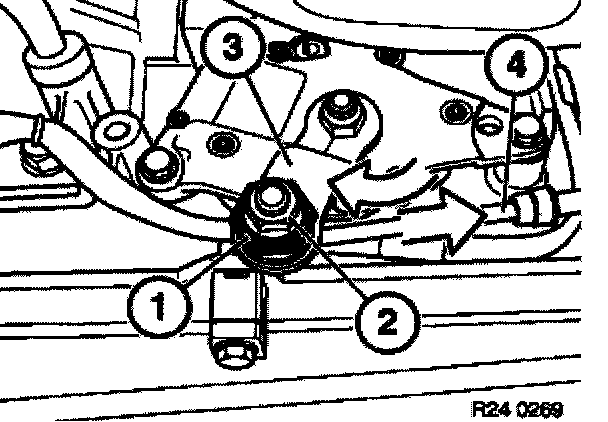

Grip clamp bushing (1).

Loosen nut (2).

Press selector lever (3) forwards (park position).

Press cable (4) in direction of arrow and release again.

Grip clamping piece (1).

Tighten nut (2).
Tightening Torque, refer to Technical Data 25 16 2AZ.

Installation:
Move selector lever into "P" setting.

Check whether parking lock is engaged by rotating Cardan shaft or by pushing car.
