Service and Replacement Parts

Service And Replacement Parts

For a severely malfunctioning A5S 360R transmission, the service procedure is to exchange it with a replacement core once an authorization has been obtained. However, there are replacement parts available for Limited Service Repairs.

Transmission Identification:







As with all BMW transmissions, an identification plate is attached to the transmission housing. The plate provides a two character alpha code signifying identification.

Refer to the alpha code when ordering a replacement transmission. This code must be checked against the parts system verifying the code is correct for the specific vehicle and for possible code/part number supersession.

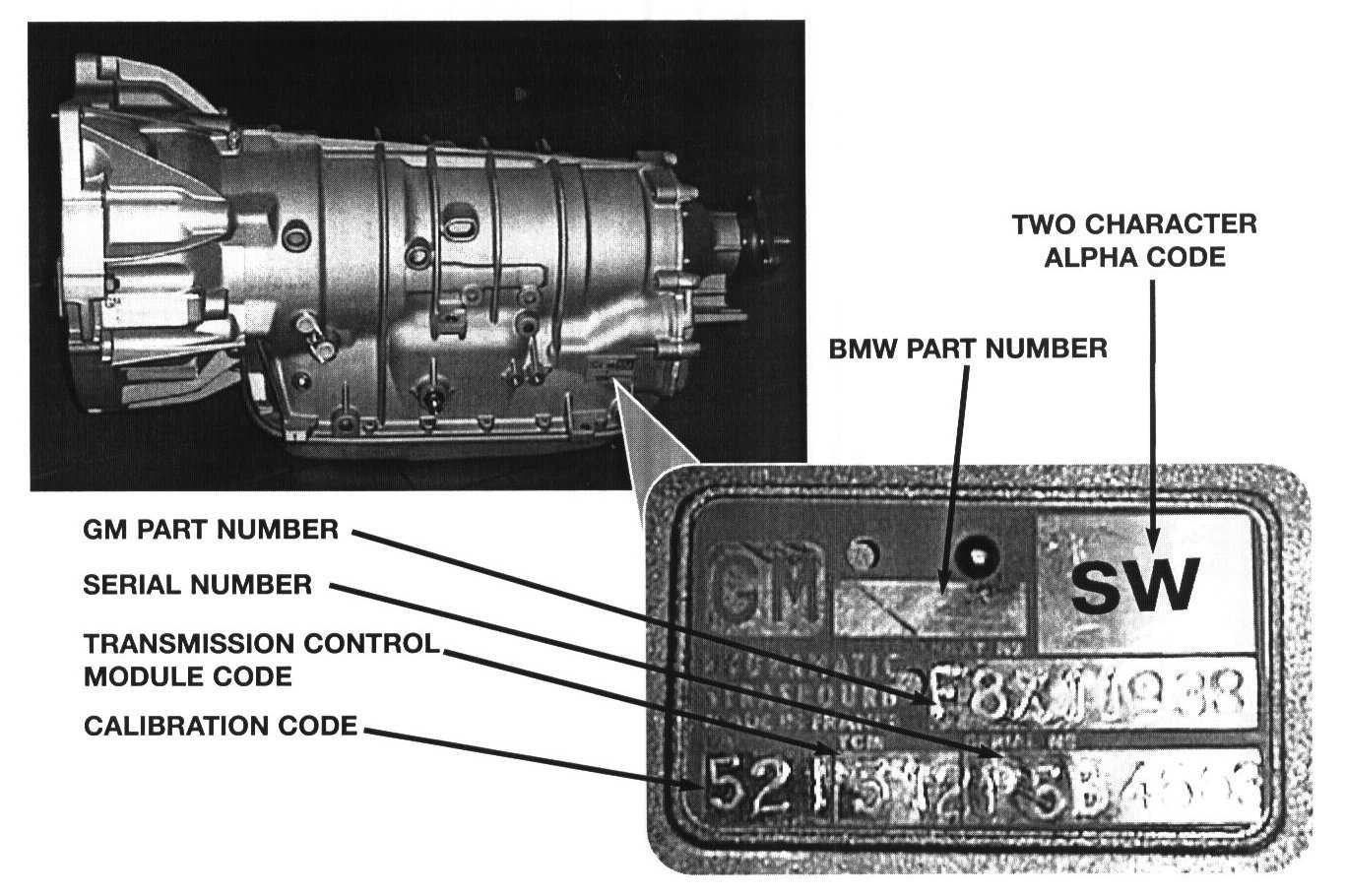

The ID plate of the A5S 360R provides the following data:

Alpha codes for the E46 as introduced are "SW" for the 328i and "SX" for the 323i.

Limited Service Repairs:







Minor electrical and mechanical repairs can be performed on the A55 360R.

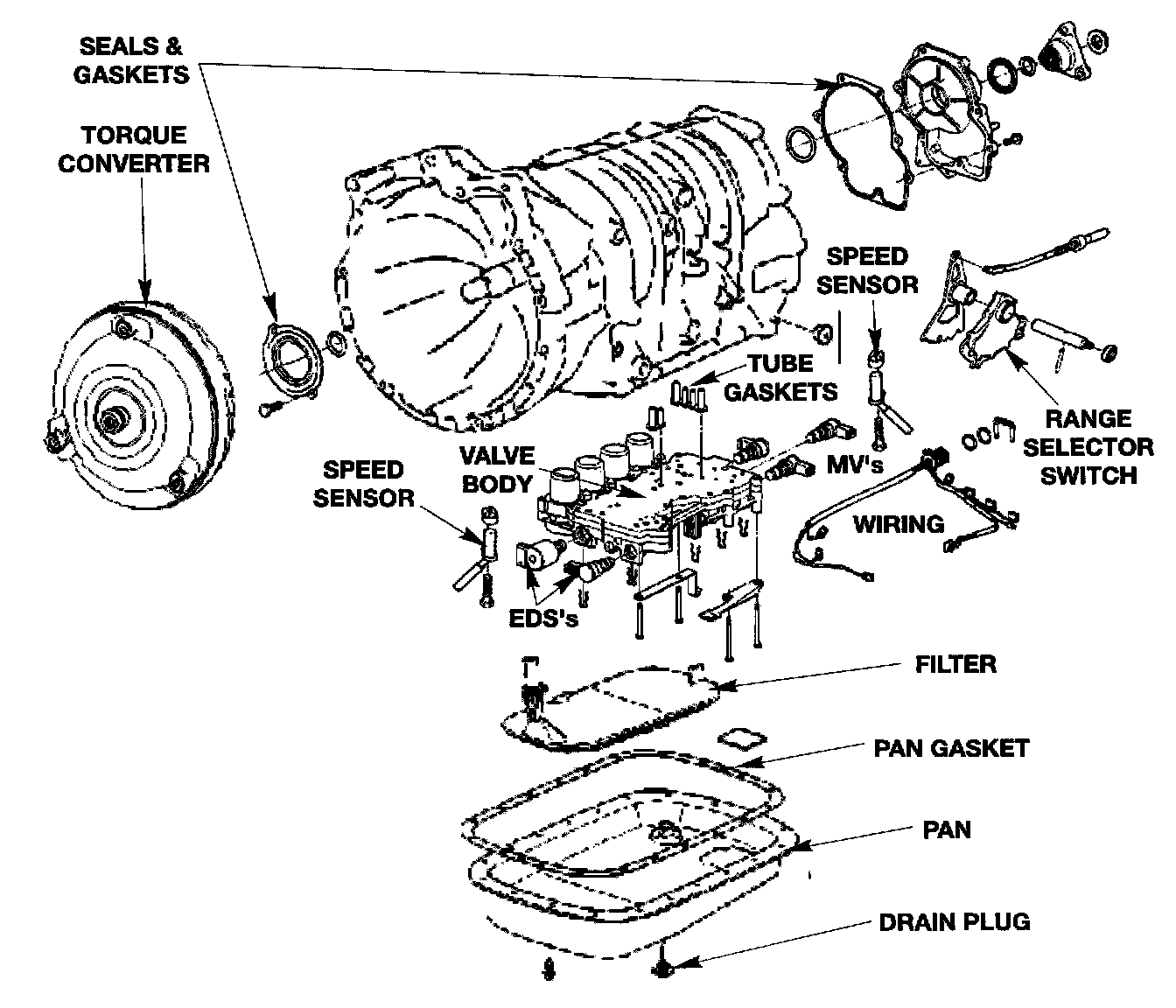

The following are included in the repair scope of the A55 360R:

Service Parts: Oil Filter unit, Pan Gasket, Oil Filler and Drain plugs with seals. Oil Leaks: Radial Seals and Gaskets

Mechanical Faults: Torque converter core replacement, Parking Paw mechanism,

Hydraulic control faults - Valve Body Replacement

Electrical Faults - Shift Solenoids. Torque converter pressure regulator and Main Line oil pressure regulator; Wiring harness (fluid temperature sensor), Range Selector Switch, Turbine and output speed sensors.
