24 34 863 Replacing Pressure Regulator For System Pressure (AS5 325Z)

Replacing Pressure Regulator For System Pressure (AS5 325Z)

Note: After completing work, top up ATF level.

Shift unit removed. Service and Repair

Caution:
It is absolutely essential to use the approved automatic transmission fluid in this automatic transmission, refer to Specifications, Fluid Type.

Failure to comply with this requirement will result in serious damage to the automatic transmission!.





Disconnect plug (1) from pressure regulator (2) for system pressure.





Unscrew bolt (1).

Remove retaining plate (2).

Remove pressure regulator (3) for system pressure.

Installation: Coat new pressure regulator (3) for system pressure with ATF.

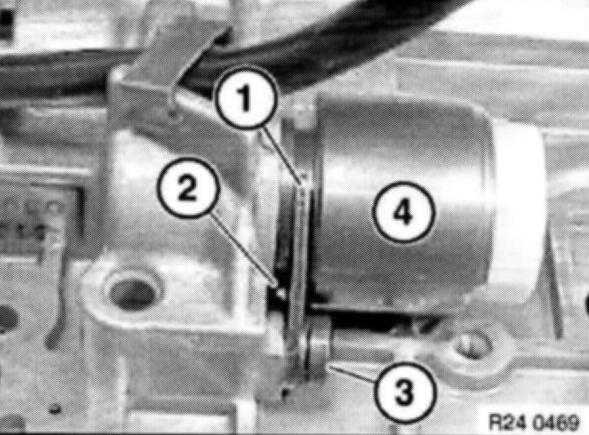

Slide in pressure regulator (4).

Install retaining plate (1) with lug (2) as illustrated.

Install screw (3).
