Procedures

Remove/Sealing Or Replacing Transmission Oil Sump (A5S 325Z)
After completing work, top up ATF level.

Check/top up fluid level in automatic transmission.

Caution:
It is absolutely essential to use the approved automatic transmission fluid in this automatic transmission.
Failure to comply with this requirement will result in serious damage to the automatic transmission!

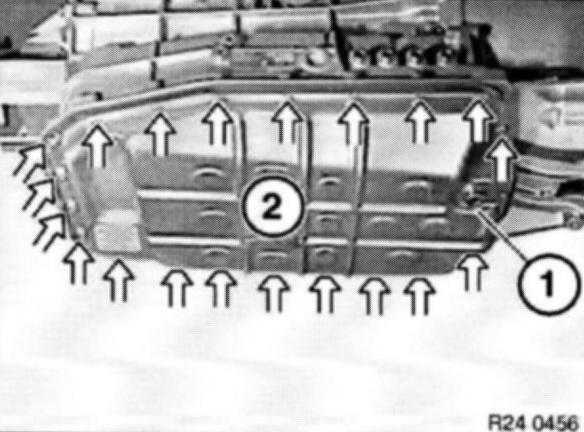

Release drain plug (1).

Drain automatic transmission fluid.
Tightening Torque, 35 Nm.

Unscrew all bolts. Remove oil sump (2).





Remove gasket (1).

Clean sealing surface (2).

Installation:
Replace seal.

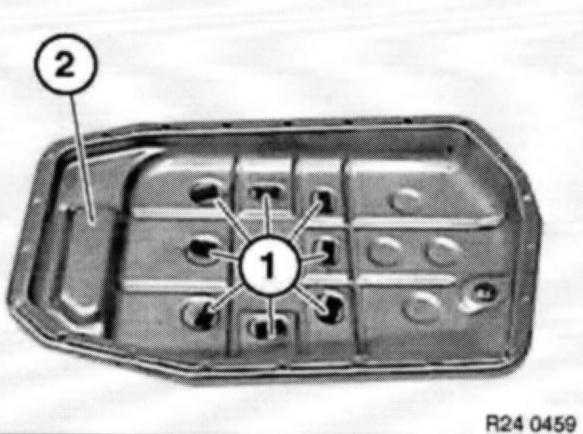

Clean magnets (1) and insert in oil sump again (2).

Install oil sump (2).

Insert all screws until contact is made with screw head in each case.

Caution: Using torque wrench, do not tighten screws diagonally but once one after the other.

Do not tighten screws further.
Tightening Torque, M6 thread 6 Nm.
