24 34 859 Replacing Solenoid Valve or Pressure Regulator (A5S 325Z)

Replacing Solenoid Valve Or Pressure Regulator (A5S 325Z)

Note: After completing work, top up ATF level.

Transmission oil sump removed.

Caution:
It is absolutely essential to use the approved automatic transmission fluid in this automatic transmission.

Failure to comply with this requirement will result in serious damage to the automatic transmission.

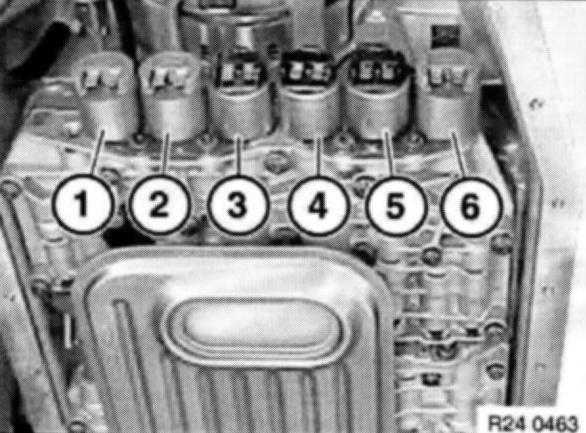

1. Solenoid valve 3
2. Solenoid valve 2
3. Pressure regulator 3
4. Pressure regulator 4
5. Pressure regulator 2
6. Solenoid valve 1

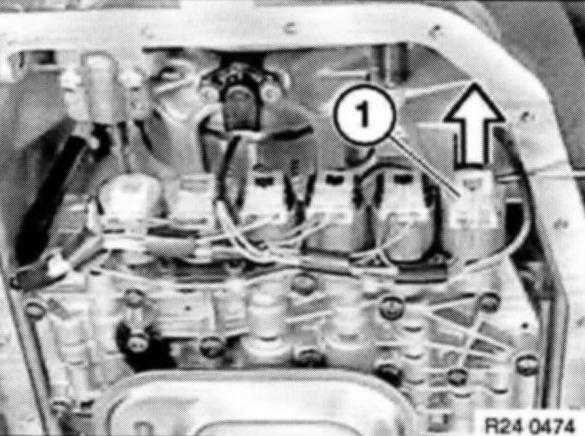

Detach plug (1) from solenoid valve or pressure regulator.

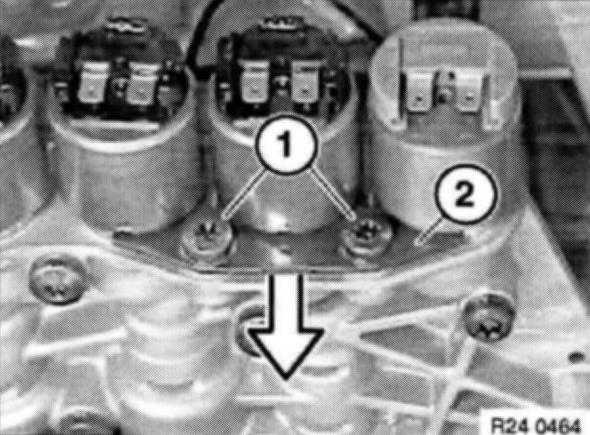

Release screws (1).

Remove retaining plate (2).

Withdraw solenoid valve (1, 2 or 3) or pressure regulator (2, 3 or 4).

Installation:
Coat new solenoid valve with ATF.





Installation:

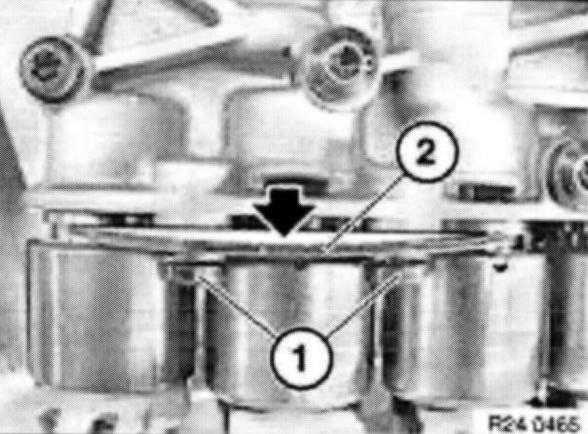

Note installation position of retaining plate (2)!
Curved surface of retaining plate (2) must point to solenoid valve or pressure regulator.
Install screws (1).
Tightening Torque, retainig plate for soleniod valves and pressure regulator on shift unit - 6 Nm.
