24 32 550 Replacing Pressure Regulator For Converter Lockup Clutch (AS5 360R / 390R, A4S 200R)

24 32 550 Replacing pressure regulator for converter lockup clutch (AS5 360R / 390R, A4S 200R)

Important! After completion of work, check transmission fluid level.
Use only the approved transmission fluid in this automatic transmission.

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:
^ Remove shift unit. Service and Repair





Remove retaining spring.

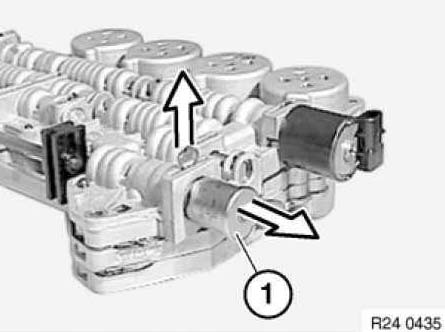

Pull out pressure regulator (1) for converter lockup clutch.

Installation:
Coat new pressure regulator (1) for converter lockup clutch with automatic transmission fluid.
