Replacing Exhaust Camshaft Position Sensor Bank I, Sensor II (B)

Replacing Exhaust Camshaft Position Sensor Bank I, Sensor II (B) / Replacing Pulse Generator On Exhaust Camshaft

Turn off ignition.







Location:
On cylinder head at front on exhaust side.

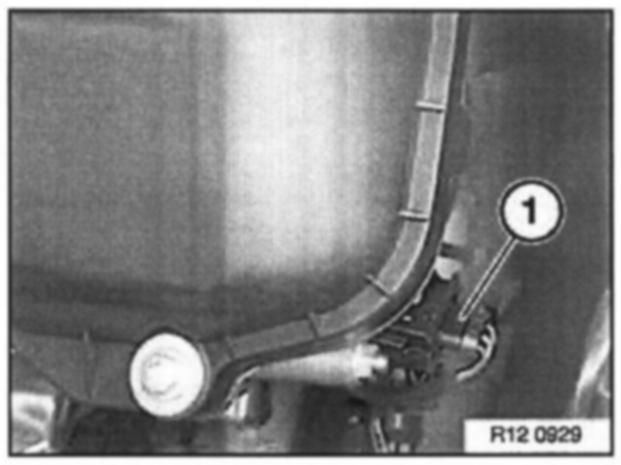

Unlock plug (1) and detach from pulse generator.

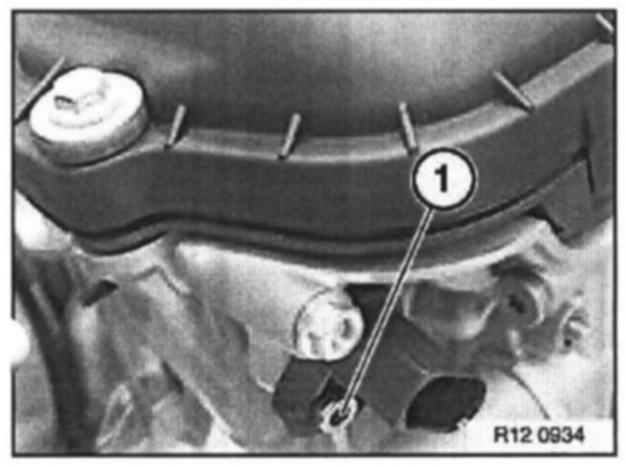

Release screw (1) on cylinder head.
Remove pulse generator.

Installation:
Check sealing ring for possible damage, replace if necessary.







NOTE:
Interrogate fault memory of DME control module.
Check stored fault messages.
Rectify faults.
Then clear fault memory.
