Home >> BMW >> 2006 >> 330Ci Convertible (E46) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Motor Electronics MS45 (DME Digital Motor Electronics MS45) >> Mixture Preparation / Ignition

Mixture Preparation / Ignition

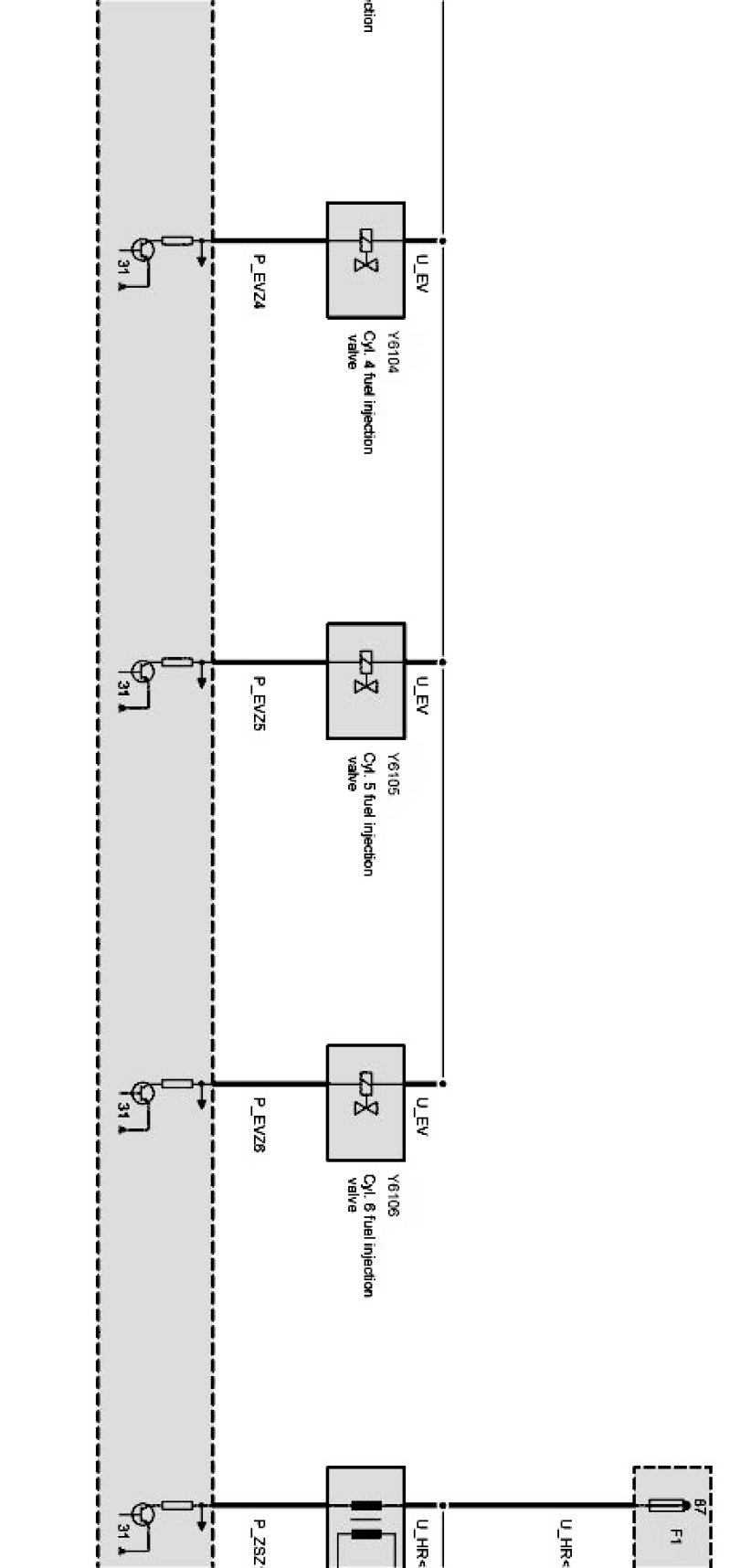

Mixture Preparation/Ignition Part 1:

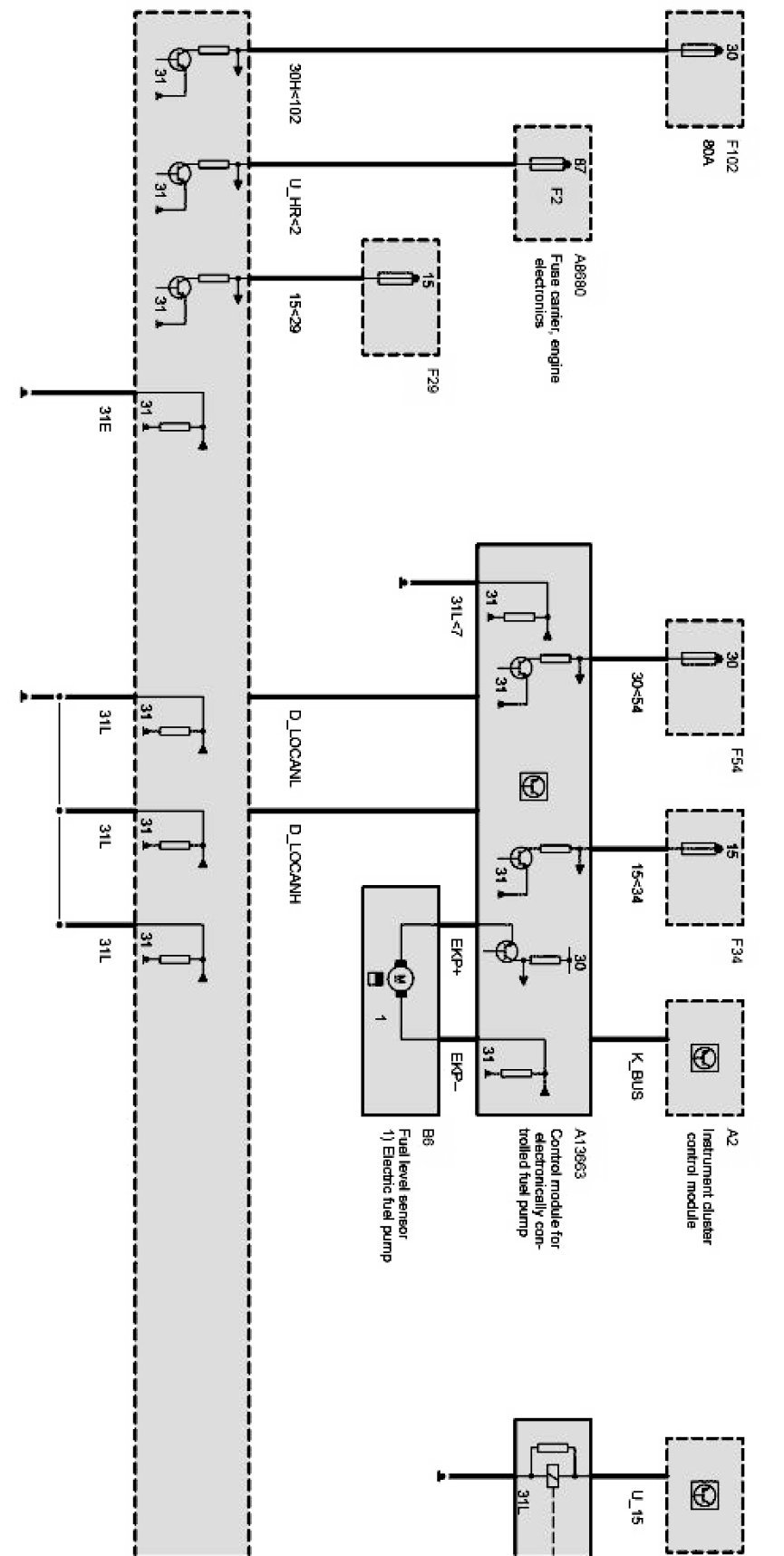

Mixture Preparation/Ignition Part 2:

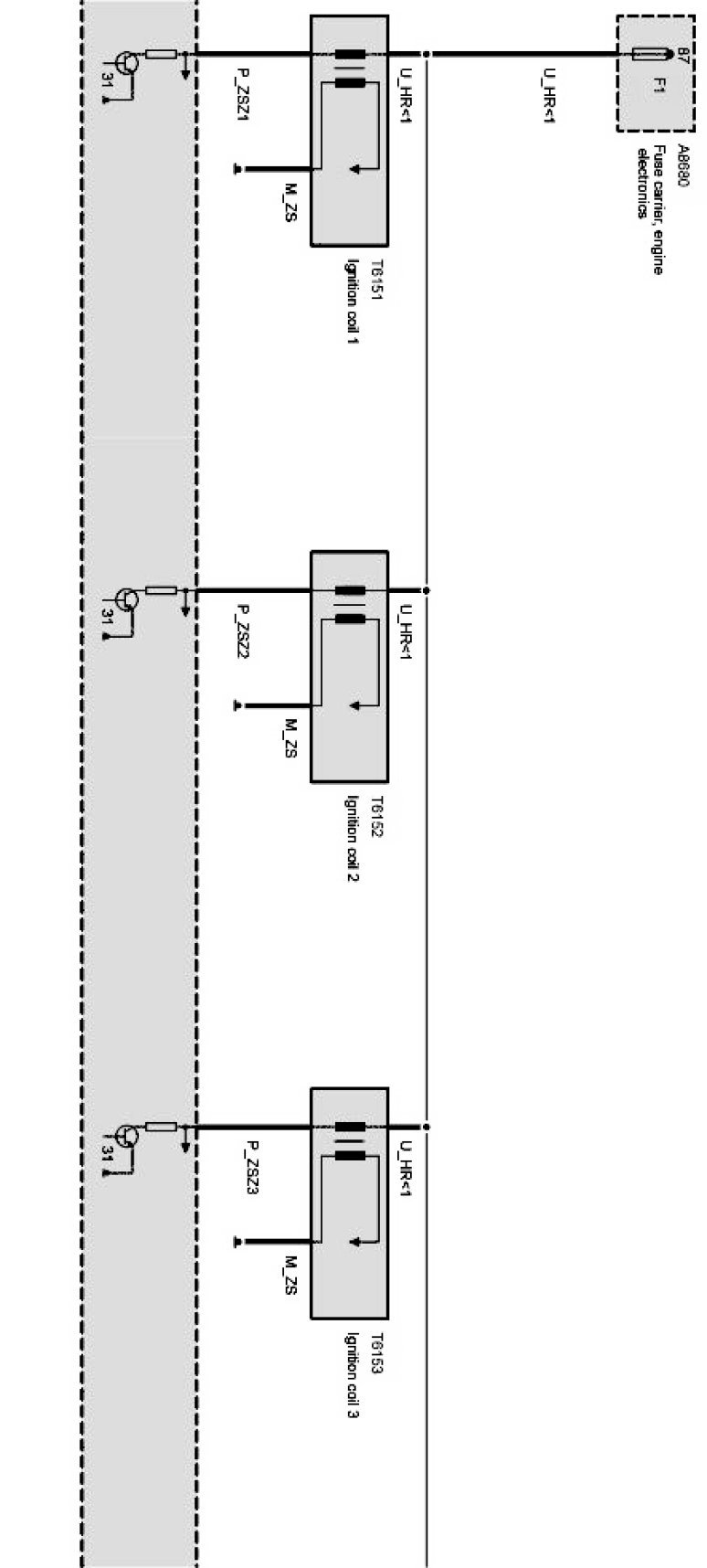

Mixture Preparation/Ignition Part 3:

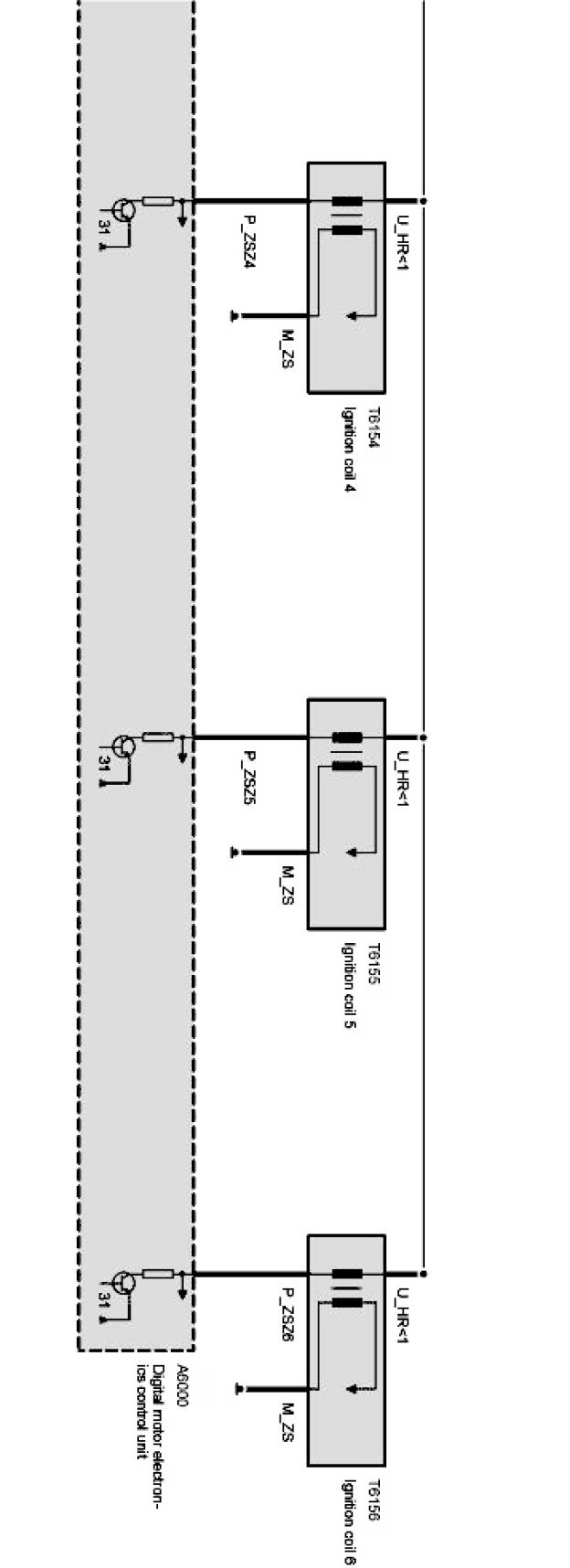

Mixture Preparation/Ignition Part 4:



Mixture Preparation/Ignition Part 5:
