Home >> BMW >> 2006 >> 330Ci Convertible (E46) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Motor Electronics MS45 (DME Digital Motor Electronics MS45) >> Interfaces >> Bit-Serial Data Interface (BSD) Generator

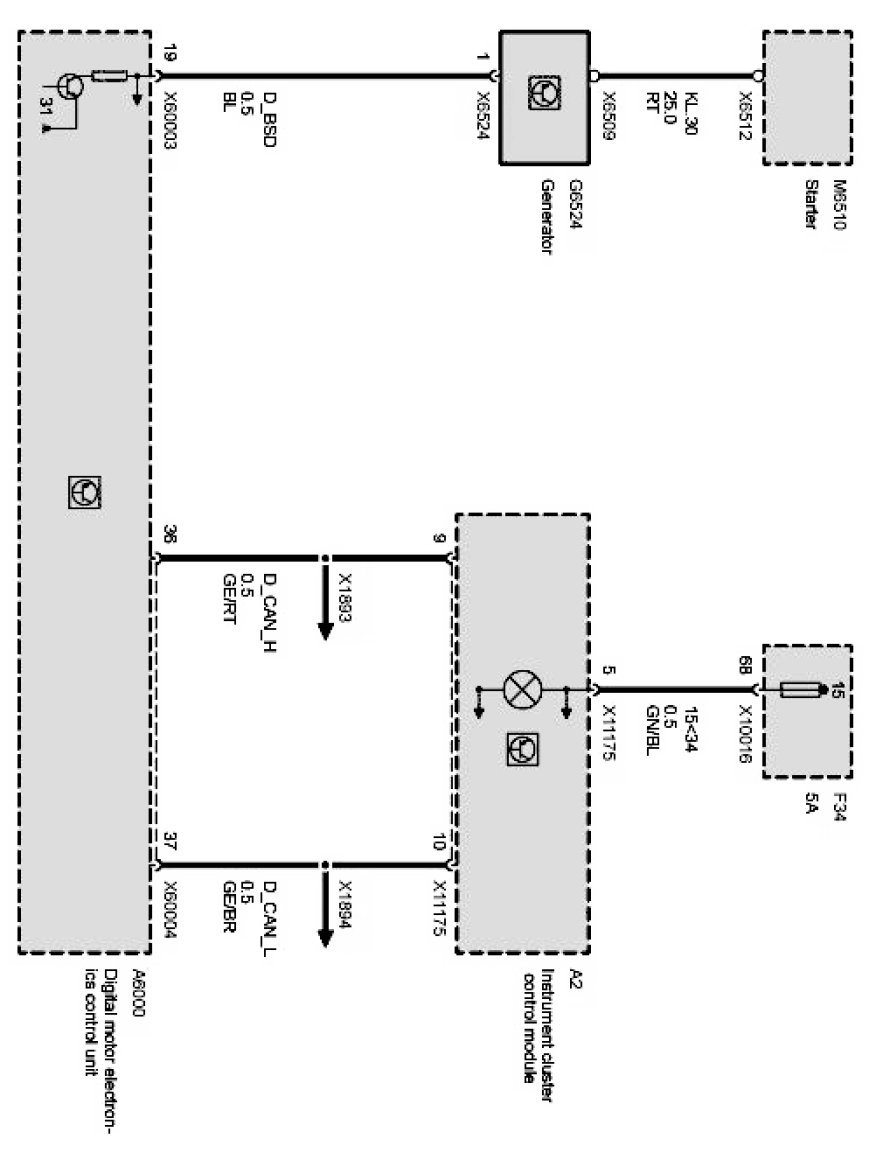

Bit-Serial Data Interface (BSD) Generator

Alternator:
