Home >> BMW >> 2006 >> 330Ci Convertible (E46) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Motor Electronics MS45 (DME Digital Motor Electronics MS45) >> Input Parameter, Mixture / Ignition

Input Parameter, Mixture / Ignition

Input Parameter, Mixture/Ignition Part 1:

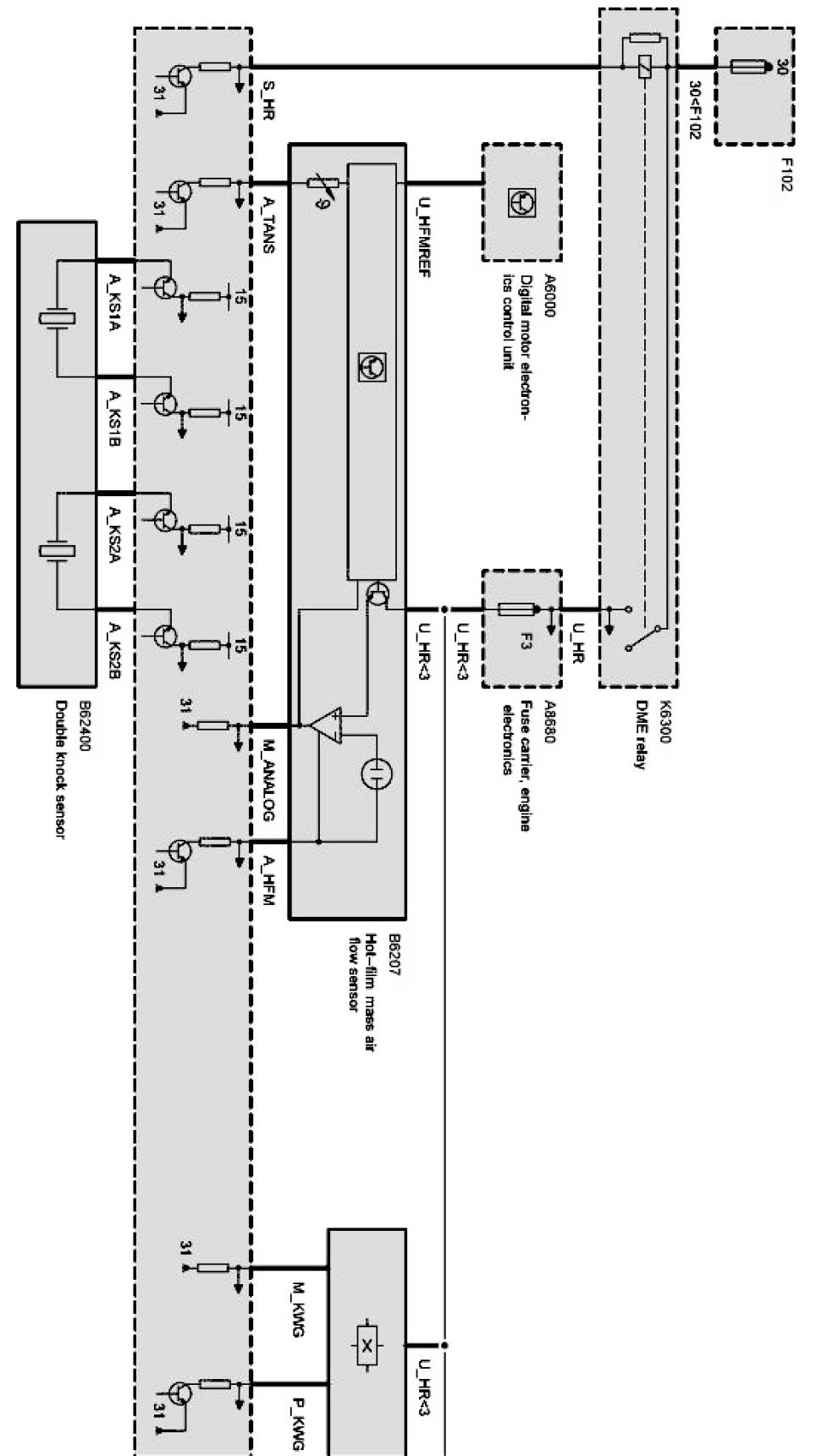

Input Parameter, Mixture/Ignition Part 2:

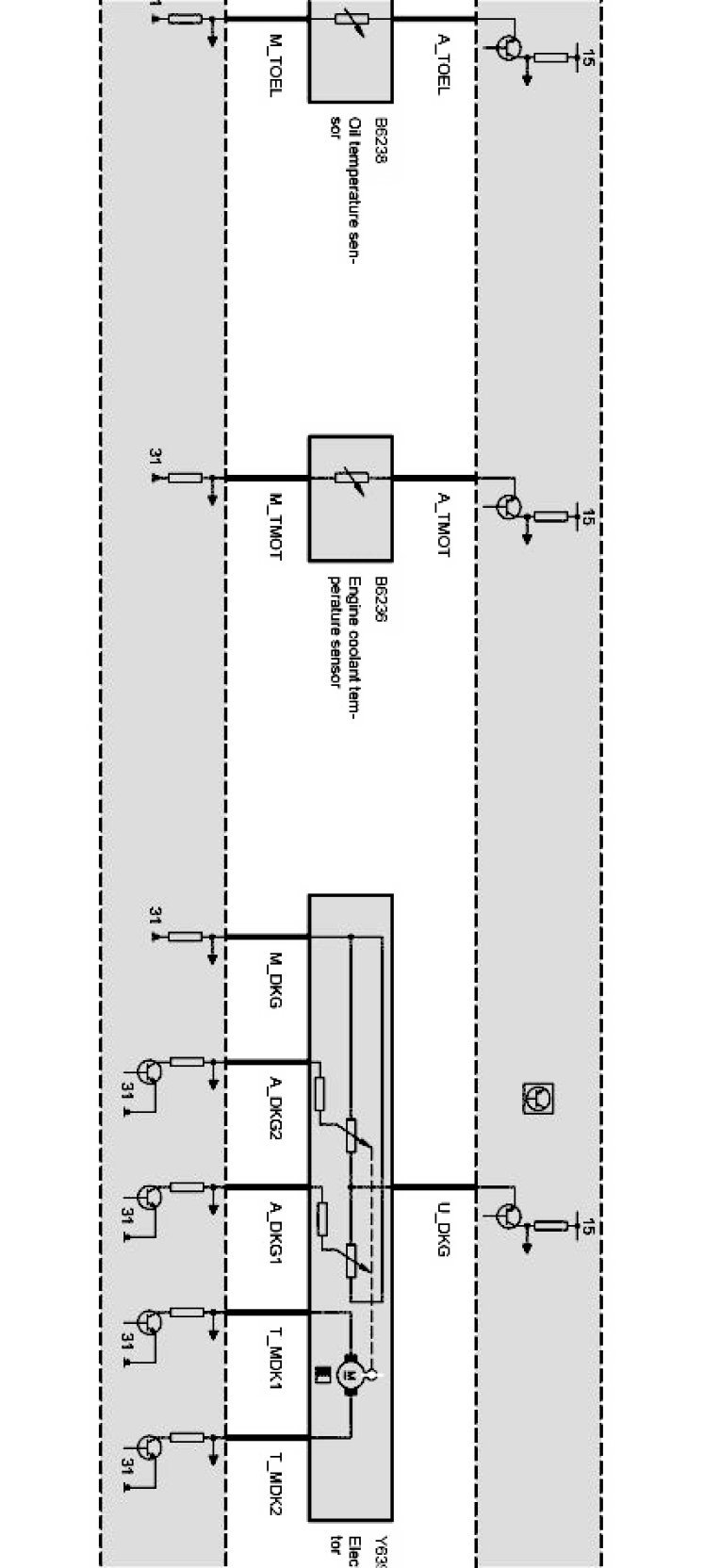

Input Parameter, Mixture/Ignition Part 3:

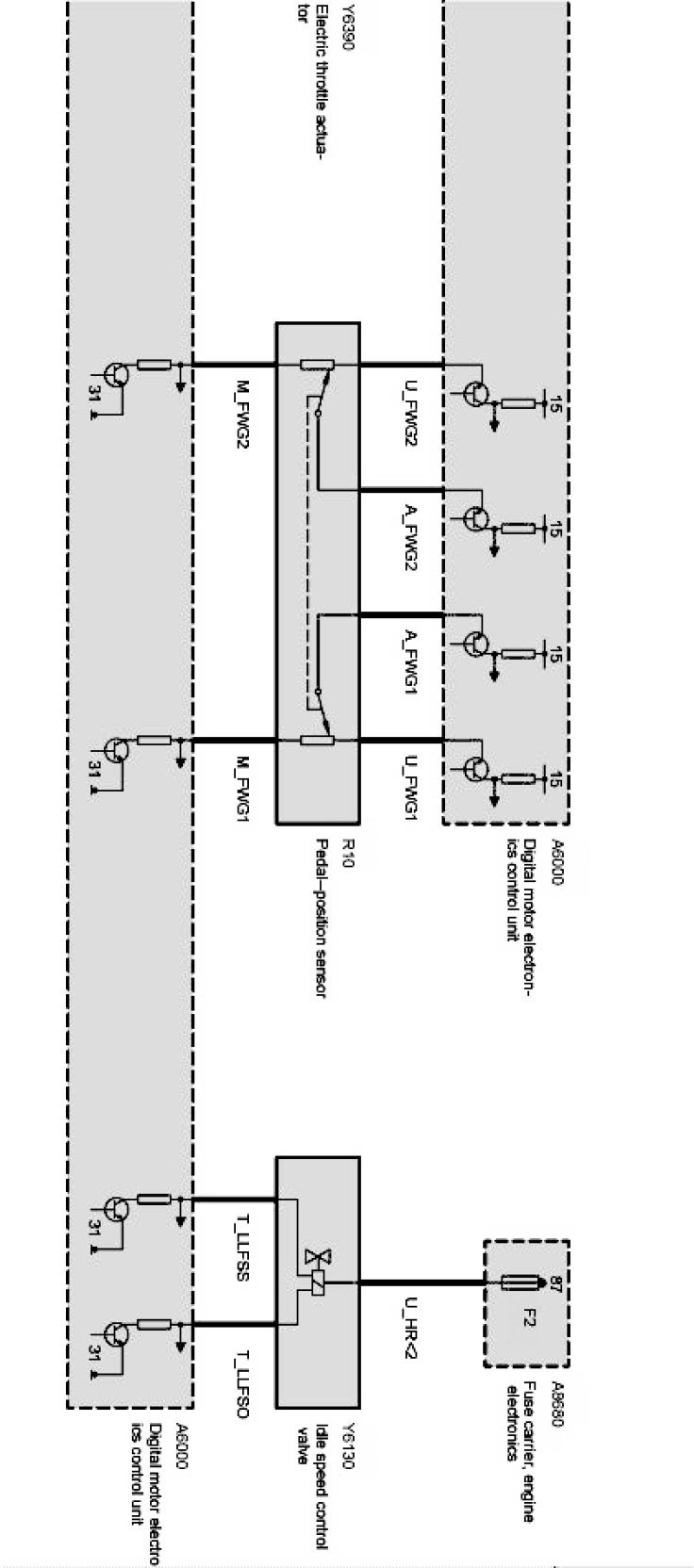

Input Parameter, Mixture/Ignition Part 4:
