FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2006
>>
330Ci Convertible (E46) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Drive
>>
Motor Electronics MS45 (DME Digital Motor Electronics MS45)
>>
Exhaust System
>>
Lambda Control
>>
Before Catalytic Converter
Before Catalytic Converter
Oxygen Sensors Before Catalytic Converter Part 1:

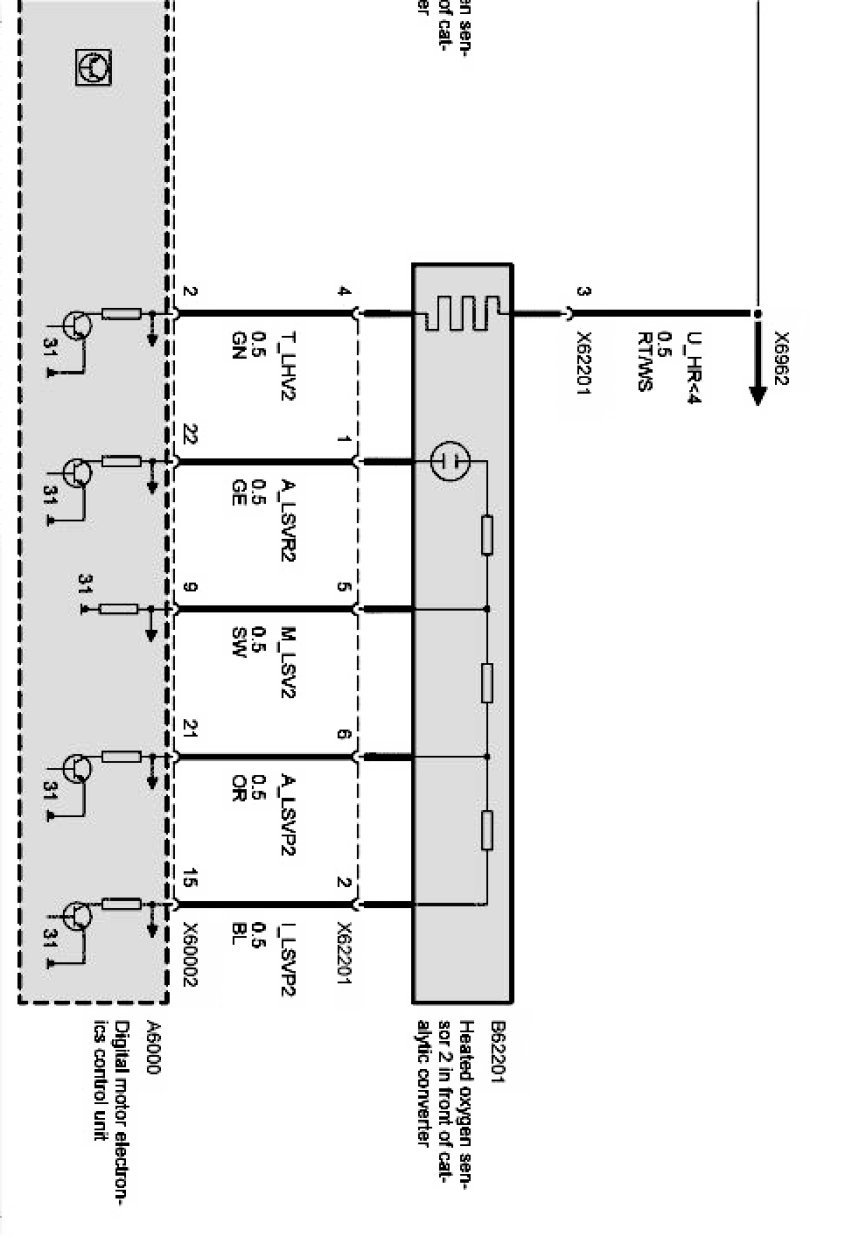

Oxygen Sensors Before Catalytic Converter Part 2:
