Passenger's Lumbar Support W/Electric Seat Adjust (Convertible W/O DME Motor Electronics MSS54)

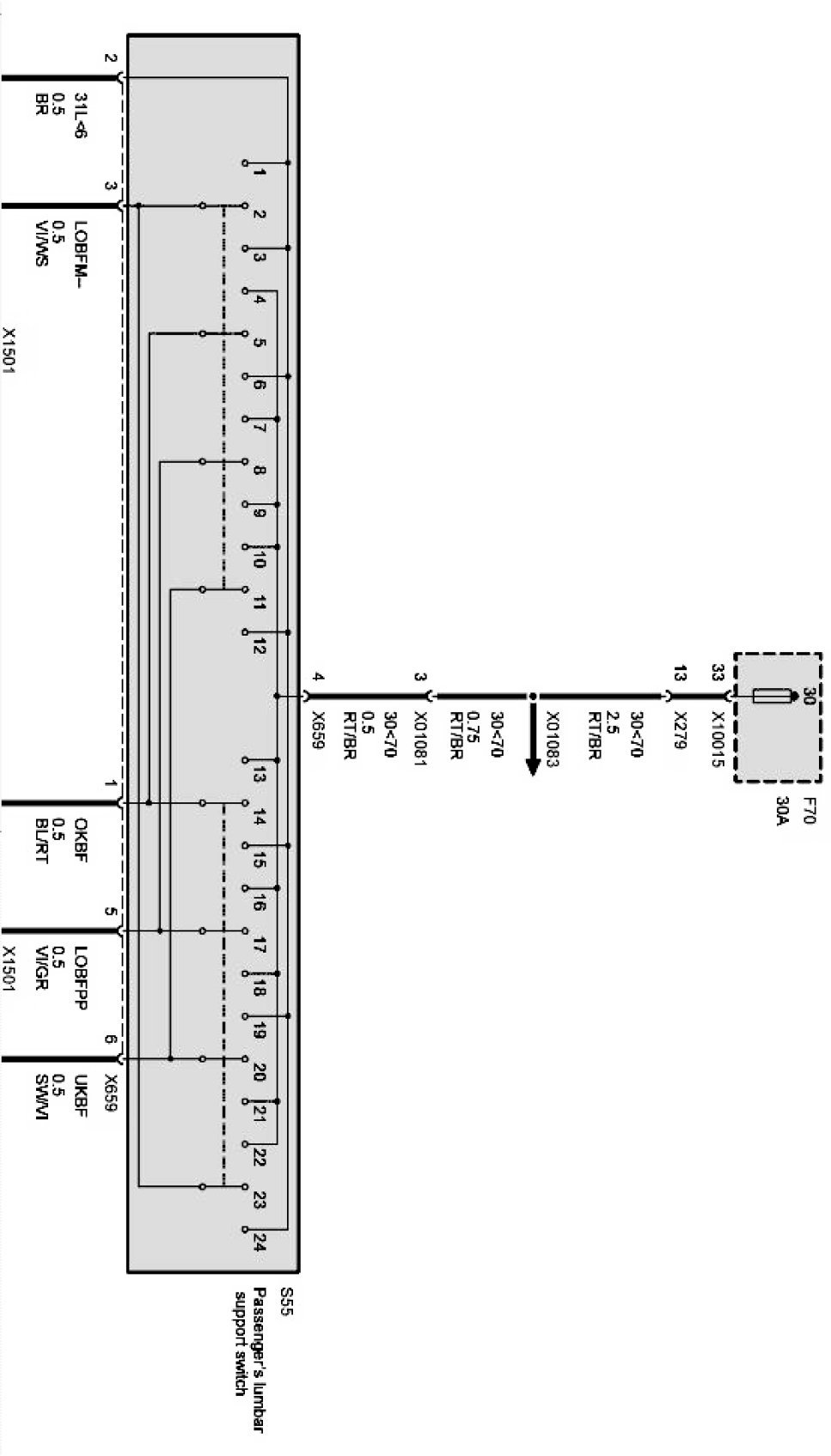

Passenger's lumbar support with electric seat adjustment Part 1:

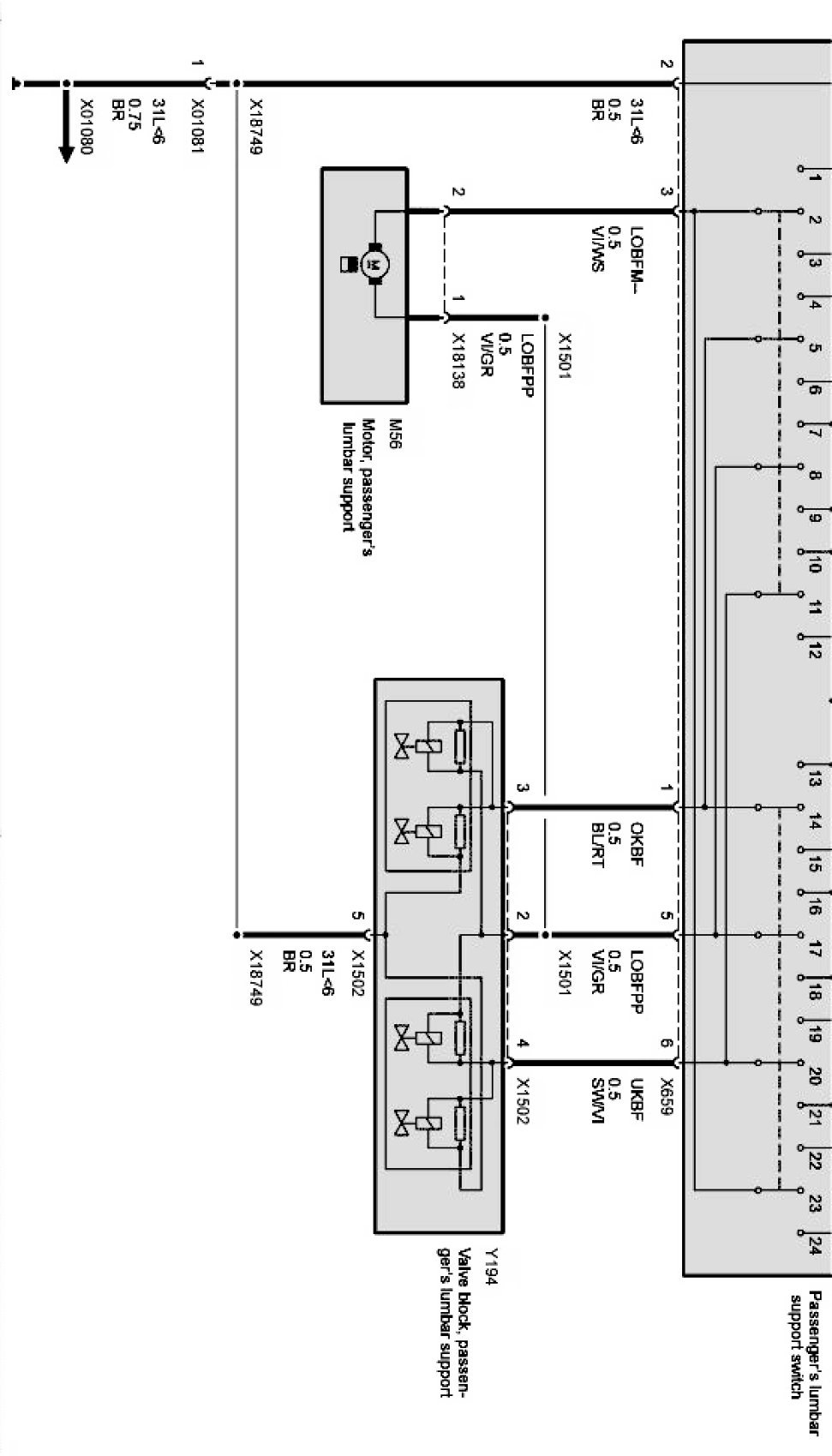

Passenger's lumbar support with electric seat adjustment Part 2:
