Driver Lumbar Support With Electric Seat Adjustment (Convertible Without DME MSS54)

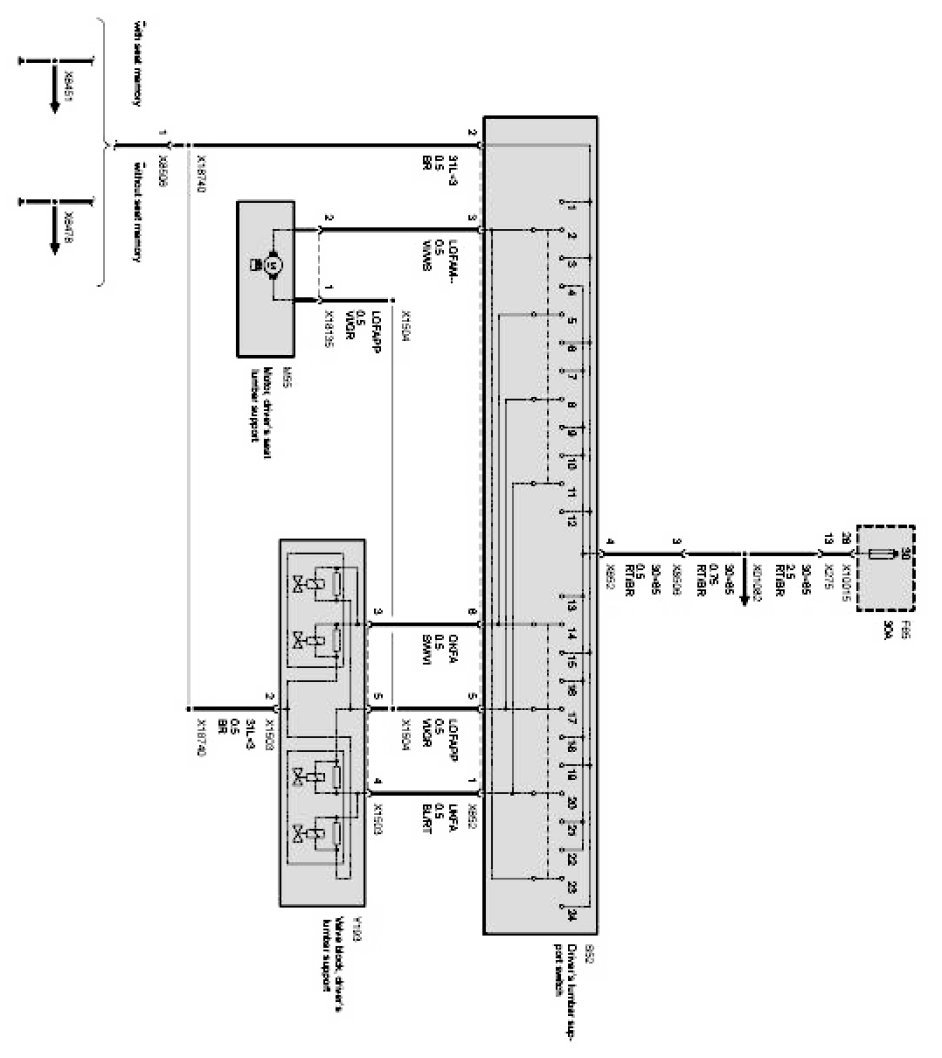

Driver's lumbar support with electric seat adjustment:
