Wagon

41 00 ... Arranging Shaped Parts For Cavity Bulkhead

To reduce interior noise, certain areas of the body can have the cavities sealed. To do this, shaped parts are inserted in the cavities. The shaped parts expand to fit the contact faces perfectly by heating the body to approx. 180 °C and holding the temperature for approx. 20 minutes.

Since it is not possible during body repairs to heat the body up and maintain it at the temperature for long enough, the following procedure has been defined for this eventuality.

This procedure is described in
Installation of shaped parts for cavity bulkheads, except for side member cover
Installing cavity bulkhead cover for side member
Installation of a cavity bulkhead with cavity foam.

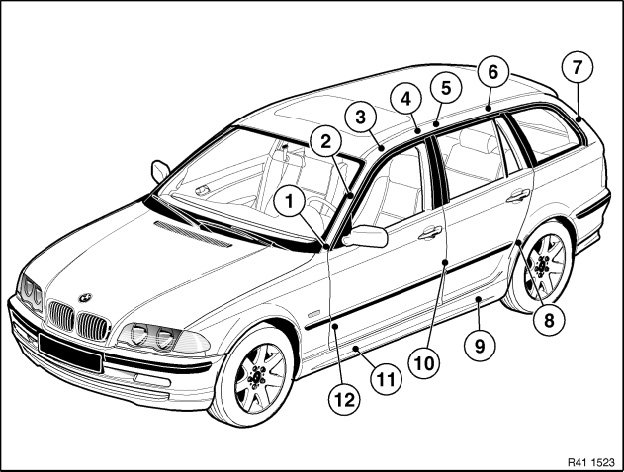

Location of shaped parts for cavity sealing E46 Touring







Location of shaped parts is marked by points.
- (1) A-pillar,
Installation of a cavity bulkhead with cavity foam
Installing shaped parts for cavity bulkheads, except for cover for side member
- (2) Cowl panel, side
Installing shaped parts for cavity bulkheads, except for cover for side member
- (3) Roof frame, inner front and rear,
Installing shaped parts for cavity bulkheads, except for cover for side member
- (4) Roof frame, center front,
Installing shaped parts for cavity bulkheads, except for cover for side member
- (5) Roof frame, center rear,
Installing shaped parts for cavity bulkheads, except for cover for side member
- (6) C-pillar, top,
Spare part already in expanded form

Location of shaped parts for cavity sealing E46 Touring







Location of shaped parts is marked by points.
- (7) D-pillar,
Installing shaped parts for cavity bulkheads, except for cover for side member
- (8) Entrance, rear,
Installing shaped parts for cavity bulkheads, except for cover for side member
- (9) Entrance, center outer, Spare part already in expanded form
Entrance, center inner,
Installing shaped parts for cavity bulkheads, except for cover for side member
- (10) B-pillar, outer,
Spare part already in expanded form
B-pillar, inner,
Installing shaped parts for cavity bulkheads, except for cover for side member
- (11) Entrance, front,
Installing shaped parts for cavity bulkheads, except for cover for side member
- (12) Reinforcement, engine support, rear.
