54 12 136 Removing And Installing/Replacing Headliner For Glass Slide/Tilt Sunroof Lid

Installation:
If headliner is difficult to move, apply a light coat of Renax GL1 (manufactured by Fuchs) to guide duct.

Remove glass sunroof lid.

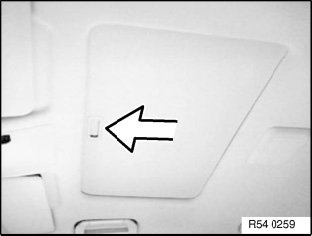

Slowly pull headliner (floating) fully towards front.

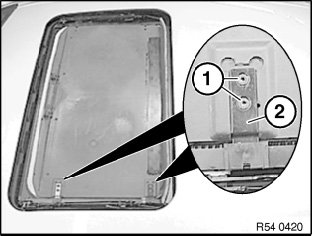

Release screws (1) from sliding member (2).

Installation:
5AZ Floating roof liner to gate 0.9 Nm

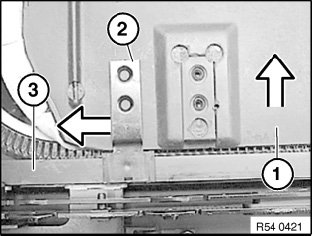

Press headliner (1) to right against springs and at same time detach sliding member (2) from guide duct (3) and headliner (1).







Installation:
Rear sliding member (1) must be fitted behind driver (2).

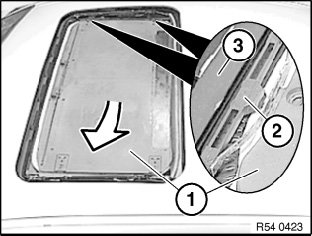

Pull headliner (1) to left/upwards with sliding members (2) out of rail (3).

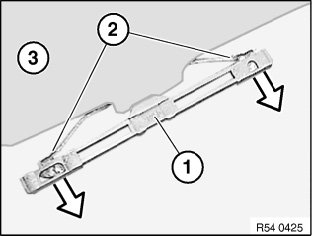

Pull sliding member (1) at front/rear off springs (2) of headliner (3).







Installation:
Nubs (2) of spring (1) must snap into place in guides (4) of sliding member (3).
