Removing and Installing/Replacing Trim Panel For Rear Left or Right Roof Pillar D-Pillar) (Touring)

51 43 252 Removing And Installing/Replacing Trim Panel For Rear Left Or Right Roof Pillar (D-pillar) (Touring)

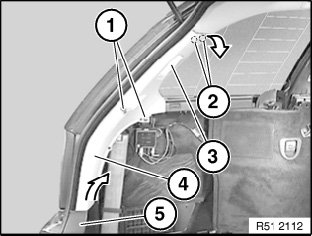

Remove flap in trunk trim panel.







Release screws (1).
Unclip clips (2) at top.
Disconnect plug connection for trunk light (3).
Detach panel (4) from panel (5) towards top and remove.







Installation:

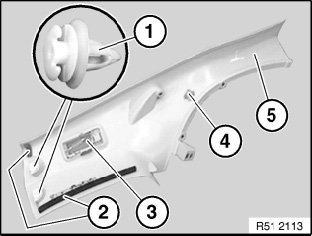

- If necessary, replace defective clips (1).
- If necessary, replace damping straps (2).

Replacement only:
Remove trunk light (3) and protective cap (4) of panel (5).
