Removing and Installing/Replacing Cover For Left or Right Belt Reel (Touring)

51 47 ... Removing And Installing/Replacing Cover For Left Or Right Belt Reel (Touring)

Removing roller cover from luggage compartment, Refer to Owner's handbook.
Remove trim for rear roof pillar (C-pillar).
Remove armrest side section on rear seat backrest (through-loading system).
Release screw for seat belt (top belt) at bottom.







Fold rear-seat backrest forwards.
Release nut (1) on cover (2).

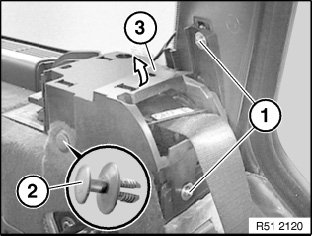

Unfasten bolts (1) and expanding rivet (2).
Lever out cover (3) and feed out belt strap.
