Removing and Installing/Replacing Finisher For Rear Apron At Top (Touring)

51 46 050 Removing And Installing/Replacing Finisher For Rear Apron At Top (Touring)

Remove both trims for roof pillar (D-pillar).

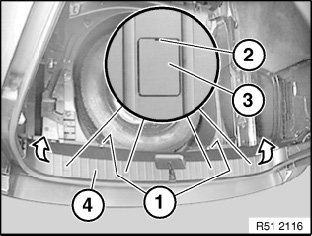

Release screws (1).
Lever out protective caps (3) at openings (2), remove and release screws underneath.
Screw out trim (4) towards inside and remove.







Installation:

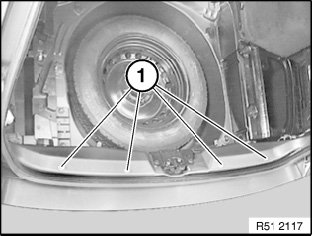

If necessary, replace faulty inserts (1).







Replacement only:

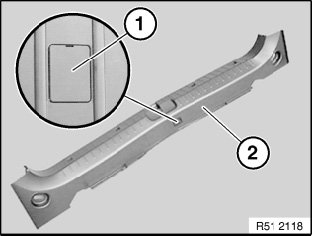

Fit trim (1) for emergency release on trim (2).
