Removing and Installing/Replacing Rear Window Lock (Touring)

51 24 140 Removing And Installing/Replacing Rear Window Lock (Touring)

Remove trunk lid trim panel.

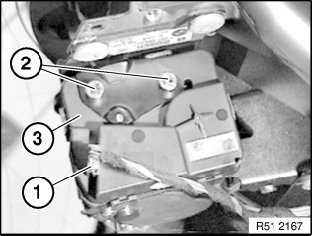

Unfasten plug connection (1).
Release screws (2) and remove rear window lock (3).

Installation:
Adjust bar on rear window.
