Removing and Installing/Replacing Flap In Trunk Trim Panel, Left or Right (Touring)

51 47 172 Removing And Installing/Replacing Flap In Trunk Trim Panel, Left Or Right (Touring)







Left side:

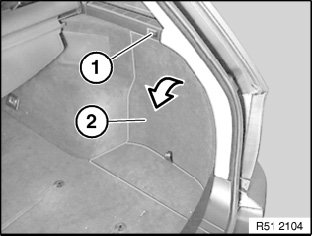

Left side:
Fold flap (2) open and remove.

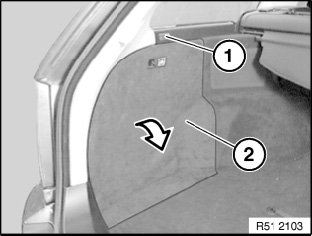

Right side:
Press release button (1).
Fold flap (2) open and remove.

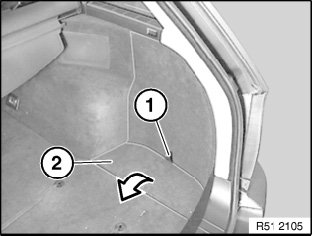

Fold flap (2) open at loop (1) and remove.

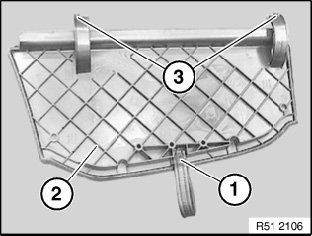

Replacement only:
Release screw (1) and remove loop (2).
Ends of mounts (3) must not be damaged.
