51 49 007 Removing and Installing/Replacing All Trims For Rear Lid (Touring)

51 49 007 Removing And Installing/Replacing All Trims For Rear Lid (Touring)

For removal purposes, the trim panel wedge (special tool 00 9 317) must be present twice.
Without the trim panel wedge, the sprayed links (clips) on the trims will be damaged.
Damaged trims must be replaced.

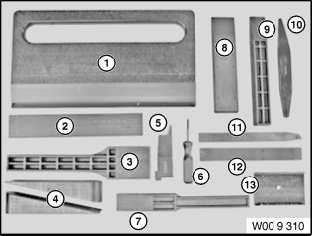

Overview "Set of plastic wedges" (special tool 00 9 310):
1. 00 9 311 Trim remover
2. 00 9 312 Striking wedge, square
3. 00 9 313 Striking wedge, large
4. 00 9 314 Adjustment wedges (2 x)
5. 00 9 315 Gap wedge
6. 00 9 316 Sealing lip wedge
7. 00 9 317 Trim panel wedge is needed twice for this work
8. 00 9 318 Universal wedge
9. 00 9 319 Striking wedge, small
10. 00 9 321 Fishbone
11. 00 9 322 Plastic wedge
12. 00 9 323 Cleaning wedge (scraper)

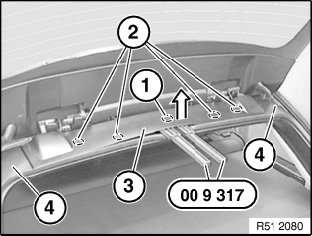

(A) Trim on rear lid, top center:
First lever out center clip (1) with two special tools 00 9 317.
Lever out outer clips (2).
Feed trim (3) out of swallow-tail guides of side trims (4).







Installation:

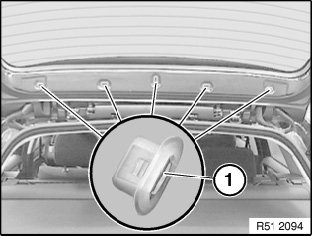

If necessary, replace faulty connector inserts (1).







Installation:
Following parts of trim (1) must not be damaged:
2 Swallow-tail guides
3 Clip mounts

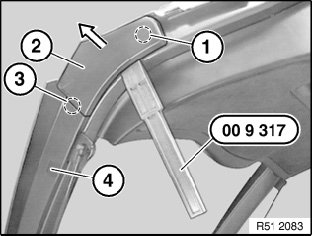

(B) Trim on rear lid, outside bottom:
Lever out clip (1) with special tool 00 9 310.
Detach trim (2) from swallow-tail guide (3) of trim (4).







Installation:

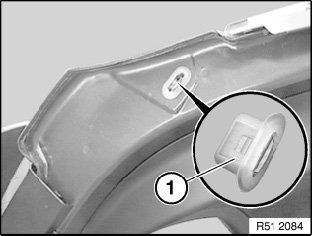

If necessary, replace faulty connector insert (1).

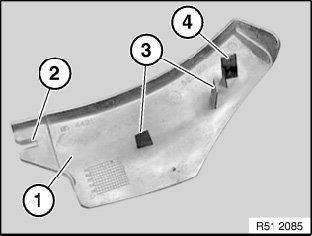

Installation:
Following parts of trim (1) must not be damaged:
2 Mount for swallow-tail guide
3 Spacer
4 Clip mount







(B) Trim on rear lid, side outside:
Release trim on rear lid, top center, refer to (A).
Release trim on rear lid, outside bottom, refer to (B).
Lever out retainers (1) of trim (2) with special tool 00 9 317.







Lever out clips (1) of trim (2) with special tool 00 9 317.

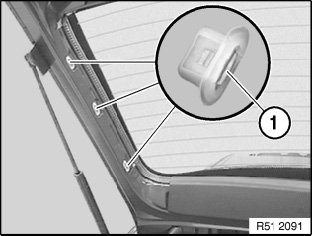

Installation:

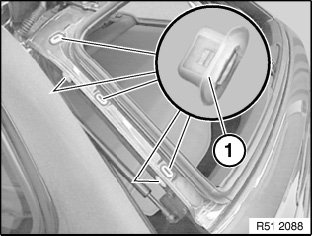

If necessary, replace faulty connector inserts (1).

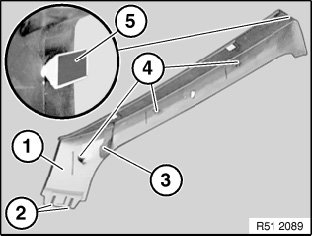

Installation:
Following parts of trim (1) must not be damaged:
2 Mounts for swallow-tail guide
4 Clip mounts
5 Swallow-tail guide If necessary, fit foam straps (3).







(D) Trim on rear lid, inside side:
Remove trunk lid trim panel.

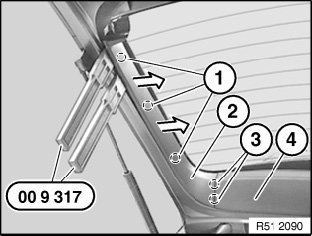

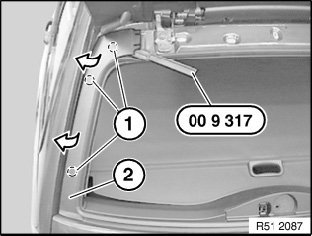

Lever out clips (1) with special tools 00 9 317.
Feed trim (2) out of swallow-tail guides (3) of center trim (4).







Installation:

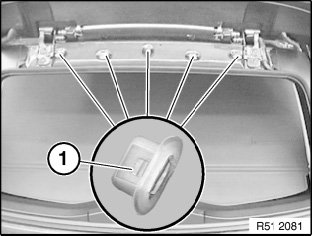

If necessary, replace faulty connector inserts (1).

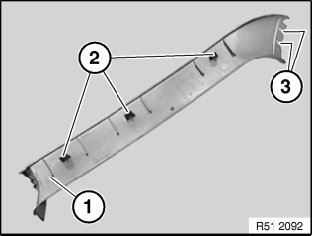

Installation:
Following parts of trim (1) must not be damaged:
2 Clip mounts
3 Mounts for swallow-tail guide







(E) Trim on rear lid, inside center:
Release trim on rear lid, inside side, left/right, refer to (D).
Lever out clips (1) of trim (2) with two special tools 00 9 317.







Installation:
If necessary, replace faulty connector inserts (1).

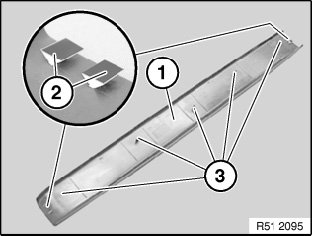

Installation:
Following parts of trim (1) must not be damaged:
2 Swallow-tail guides
3 Clip mounts
