51 49 000 Removing and Installing/Replacing Trim Panel For Trunk Lid (Touring)

51 49 000 Removing And Installing/Replacing Trim Panel For Trunk Lid (Touring)

Remove trunk light (on rear lid).







Open tailgate.

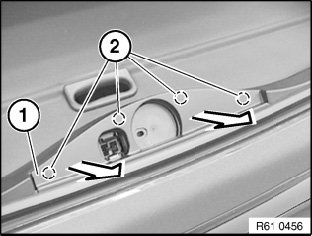

Detach trim (1) from retainers (2) and remove.







Installation:

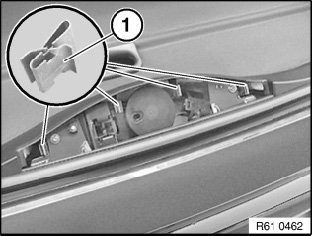

Attach retainers (1) to panel.

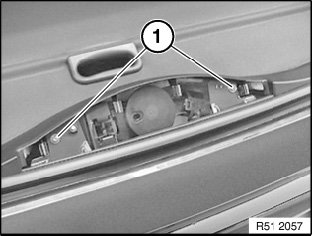

Release screws (1).







Open trunk lid.

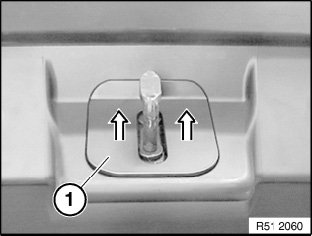

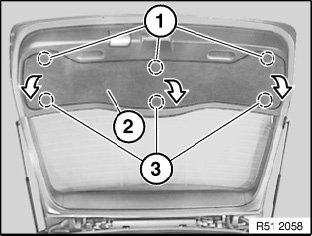

Lift out detents (1).
Feed panel (2) out of mounts (3) and remove.







Installation:

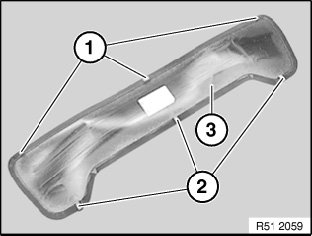

Guides (1) and catches (2) of panel (3) must not be damaged.







Unclip plate (1).

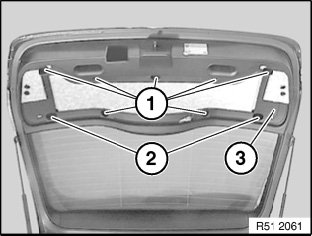

Release screws (1).
Unclip clips (2) and remove panel (3).







Installation:

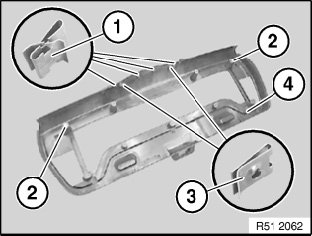

If necessary, replace faulty retainers (1), clips (2) or metal nuts (3) of panel (4).







Replacement only:

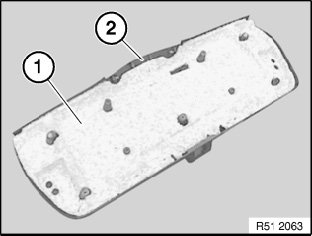

Remove insulating mat (1) from old panel (2) and insert in new panel.
