51 47 ... Removing and Installing/Replacing Cover and Parcel Shelf In Trunk (Touring)

51 47 ... Removing And Installing/Replacing Cover And Parcel Shelf In Trunk (Touring)

Remove flap in trunk trim panel, left or right.







Right side:
Remove trim for spare wheel.

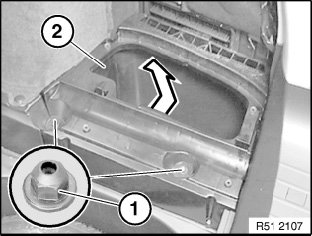

Release nuts (1) and remove tray (2) towards top.







Installation:

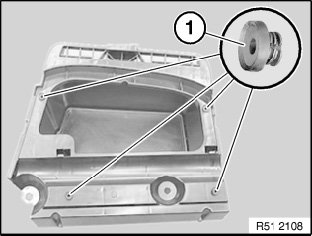

Fit rubber mount (1) on tray at top.







Version without battery in the luggage compartment:

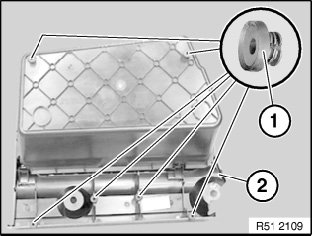

Fit rubber mount (1) on tray (2) at bottom.







Version with battery in luggage compartment:

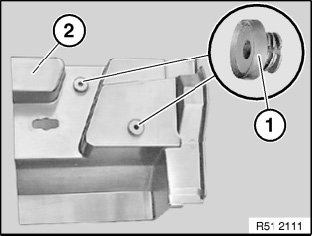

Fit rubber mount (1) on tray (2) at top.







Left side:
Remove trim for spare wheel.

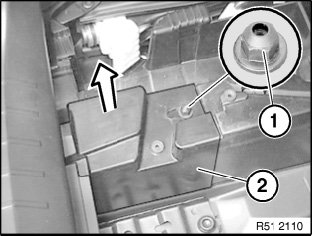

Release nut (1) and remove trim (2) towards top.







Installation:

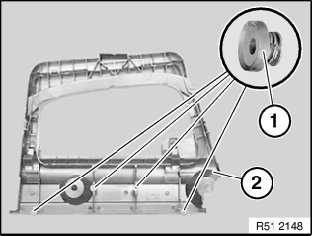

Fit rubber mount (1) on trim (2) at top.
