Removing and Installing/Replacing Brake Pedal

35 21 000 Removing and installing/replacing brake pedal


Remove trim panel for pedal assembly.
Remove brake light switch.

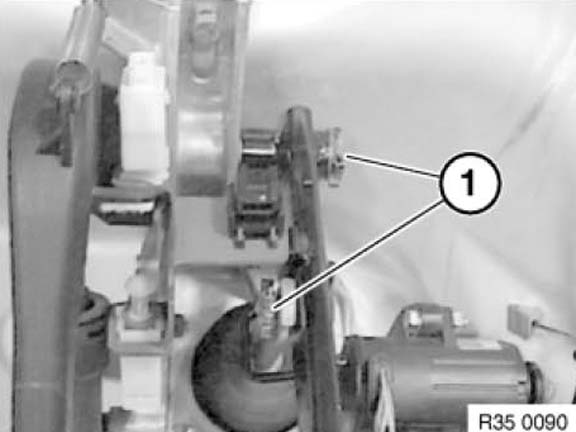

Detach retainers (1).





Installation: Use new retainers (1).

Installation:
Use new retainer.
The retainer must be seated with both legs in the pin groove.
The workshop supervisor must mark the retainer with a dot of red paint (1) thereby acknowledging correct installation.





Disconnect return spring.

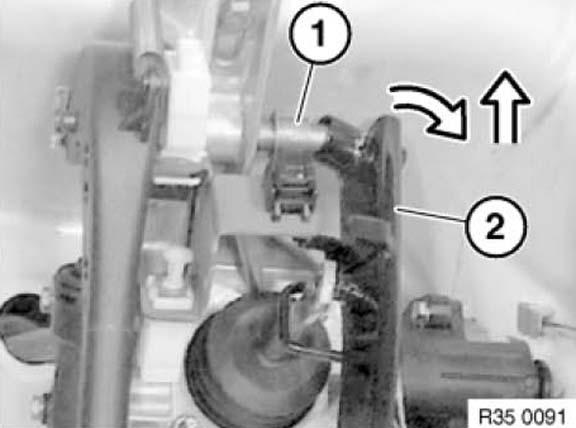

Pull bearing bushing (1) out of brake pedal and press to left.
Twist brake pedal (2) downwards out of mounting in direction of arrow.





Installation:

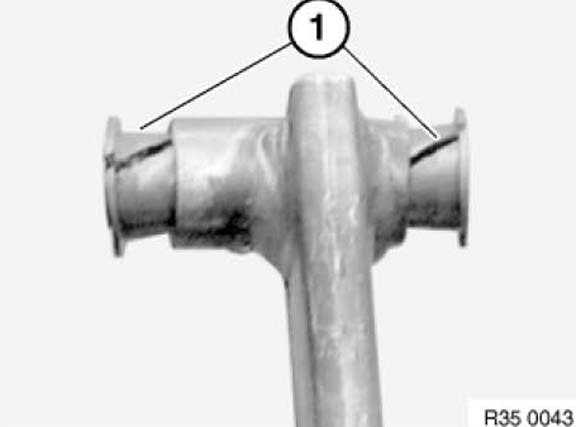

Check bearing bushes (1) and replace if necessary.
Lightly grease bearing bushes (1),
BMW Service Operating Fluids.
