Removing and Installing Mounting Block For Pedals

35 11 000 Removing and installing mounting block for pedals

Remove panel for pedal assembly.
Remove brake pedal.
Installation: Make sure plug connections engage correctly.





Unhook return spring from clutch pedal.
Press pin ends together and withdraw pin (2).
Release screws (1) from clutch master cylinder.
Remove retaining plate for brake light and clutch switches.

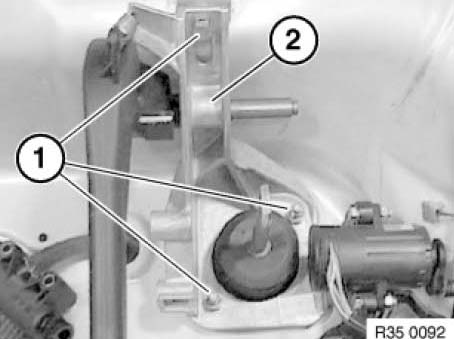

Release nuts (1) and remove bearing block (2).





Installation:
Tighten nuts (1) in front of nut (2).
