Removing and Installing/Replacing Cover on Rear Left or Right Rollover Protection Bar

51 43 031 Removing And Installing/Replacing Cover On Rear Left Or Right Rollover Protection Bar

Special tools required:
- 00 9 317







IMPORTANT:
- Risk of damage.
- If necessary, tape off covers (1 and 2).

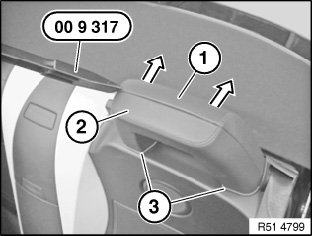

Carefully slide special tool 00 9 317 between covers (1 and 2) and detach cover (1) in direction of arrow from catches.







Installation:
Fit cover (1) correctly in intermediate rings (3).

Installation:

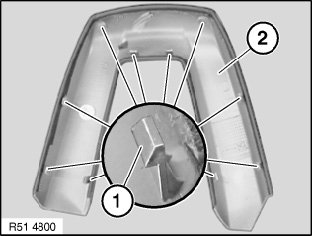

Catches (1) on cover (2) must not be damaged.
