51 12 825 Removing and Installing/Replacing Guide for Rear Centre Bumper



51 12 825 Removing and Installing/Replacing Guide For Rear Centre Bumper

Necessary preliminary tasks:
- Remove rear bumper trim

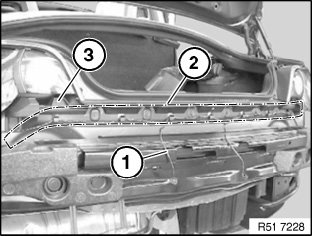

Detach wiring harness (1).
Release all screws in area (2) and guide (3).
