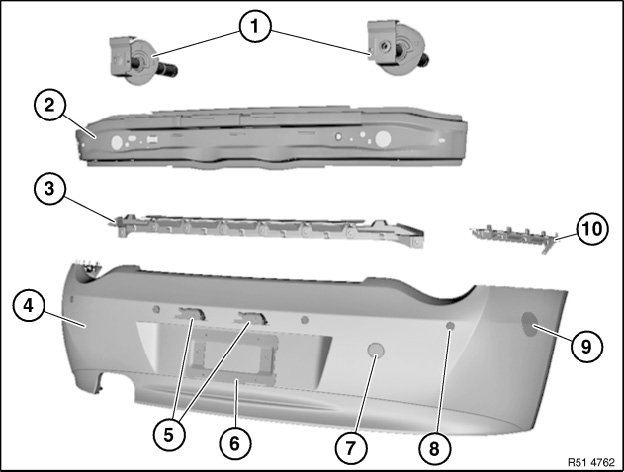

51 12 ... - Survey of rear bumper

51 12 ... Survey Of Rear Bumper







1 Impact absorber (US/Korea only)
2 Carrier
3 Guide, middle
4 Bumper trim
5 License plate lights
6 Baseplate for license plate (US/Japan only)
7 Cover on towing eye
8 Ultrasonic transducer
9 Side marker light (US only)
10 Holder, side
