Removing and Installing/Replacing Spray Nozzles of Headlight Washer System on Left or Right (Up To 09/06)

61 67 045 - Removing and installing/replacing spray nozzles of headlight washer system on left or right (up to 09/06)





Special tools required:
- 13 3 010 13 3 010 Hose Clip





Necessary preliminary tasks:
- Remove front bumper trim .





To prevent excessive escape of washer fluid, seal off end of high-pressure line with special tool 13 3 010 13 3 010 Hose Clip.
Catch any escaping washer fluid if necessary.

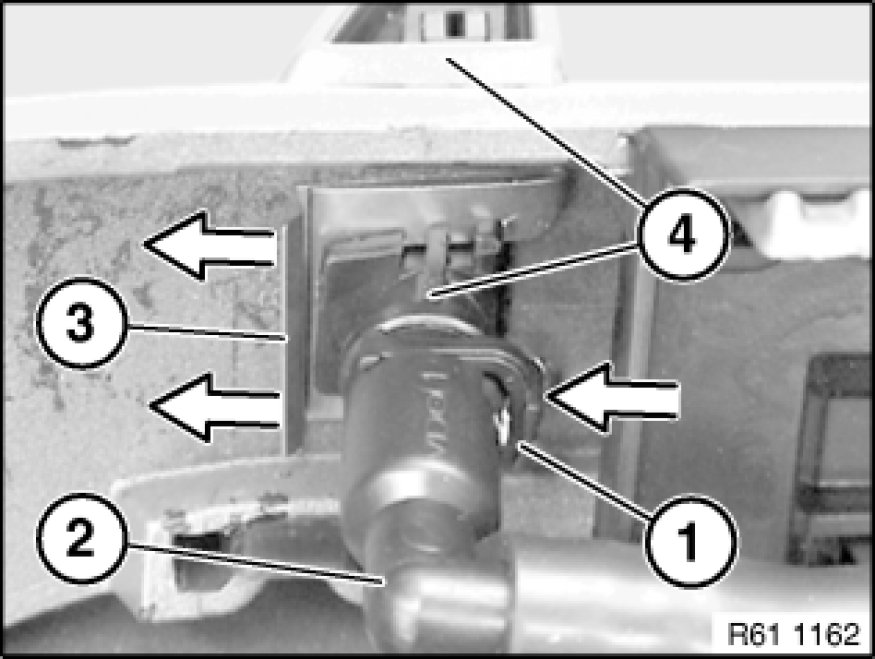

Press locking clip (1) and detach high-pressure line (2) from spray nozzle for headlight washer system (4).
Pull out retainer (3) in direction of arrow.
Remove spray nozzle of headlight washer system (4) towards front from bumper trim.

Installation:
Keep plug connection for high-pressure line (2) and spray nozzle (4) clean and free from grease.
Make sure high-pressure line (2) is correctly engaged on spray nozzle (4).
If necessary, top up washer fluid.





Replacement:

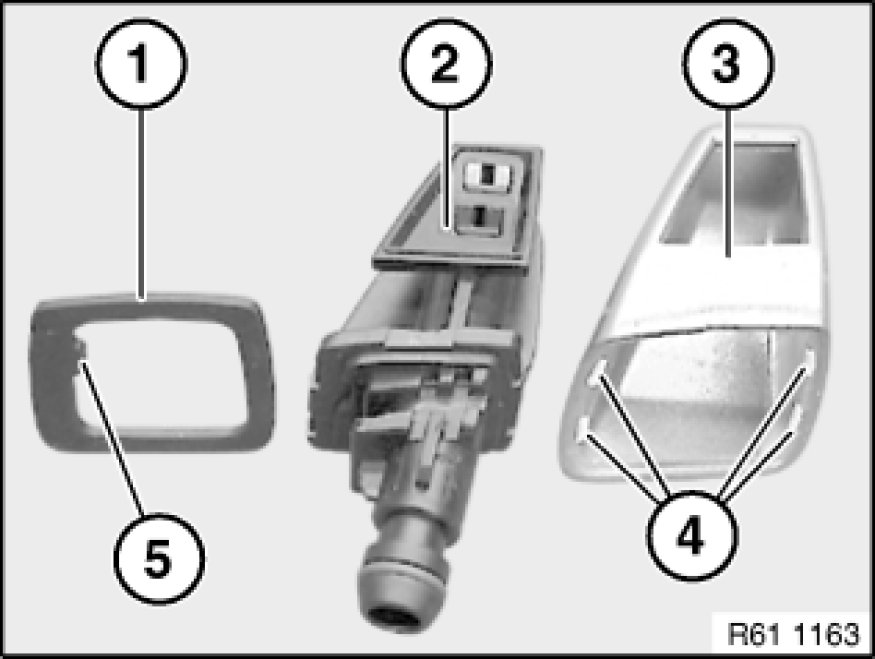

Unclip spray nozzle (2) from trim (3).

Installation:
If necessary, replace backing (1).
Guides (5) of backing (1) must be located in openings of spray nozzle (2).
Catches (4) of trim (3) must not be damaged or missing.
